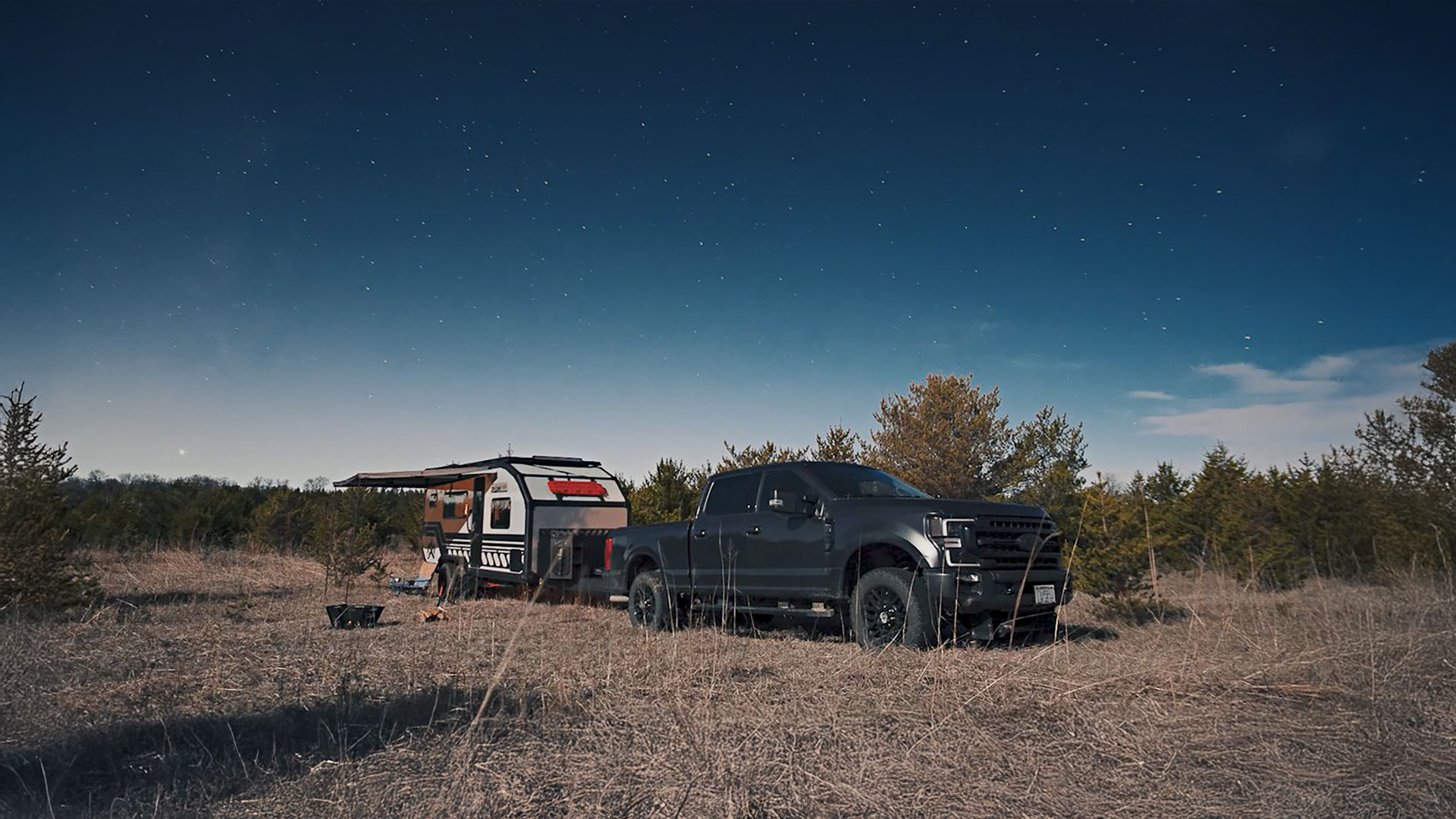

Get to the places
you've dreamed of
No hookups. No limitations. Just you, the stars, and wherever the trail leads.
Luxury - Meets Adventure
The Xplore Series encompasses the “Go where you want, when you want” mentality. Designed for those who prioritize both extreme durability and high-end comfort, the Xplore Series delivers a premium experience in the most extreme enviorments. Its fully composite body construction is engineered and built to offer exceptional structural strength while providing industry-leading thermal efficiency. This advanced insulation ensures a climate-controlled interior even in the most extreme off-road conditions, setting it apart from any standard camper available. This rugged off-grid rv comes loaded with features that allow you to explore the outdoors without restraint.
Suspension Without Compromise.
Built for extreme weather

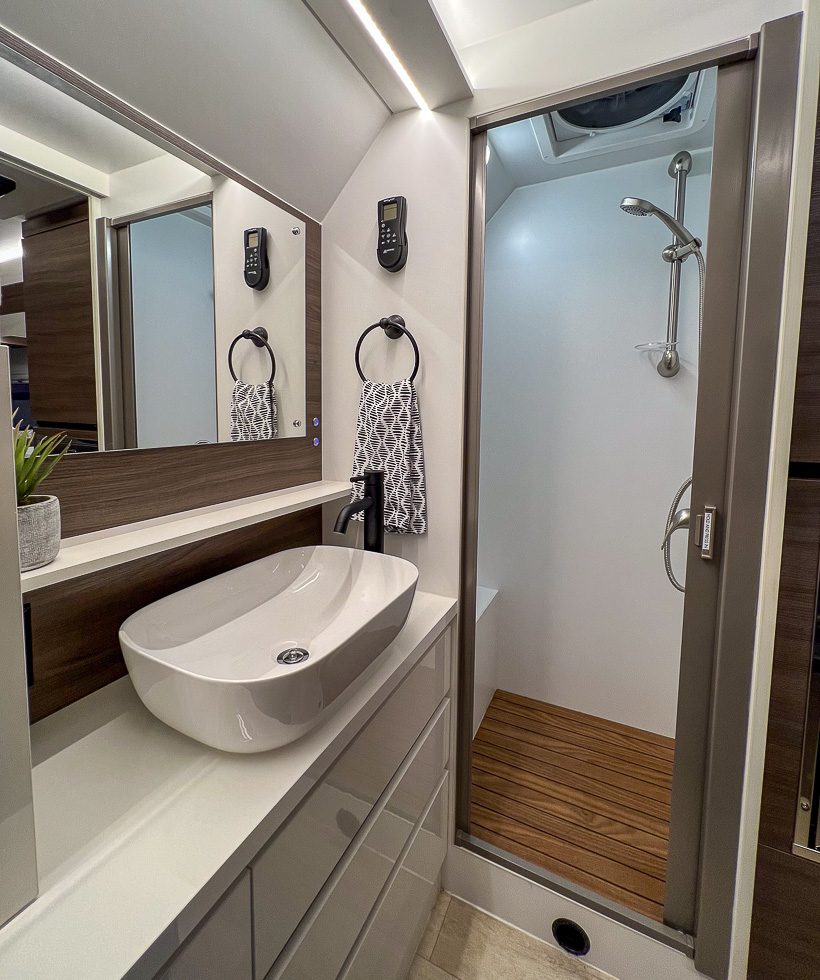

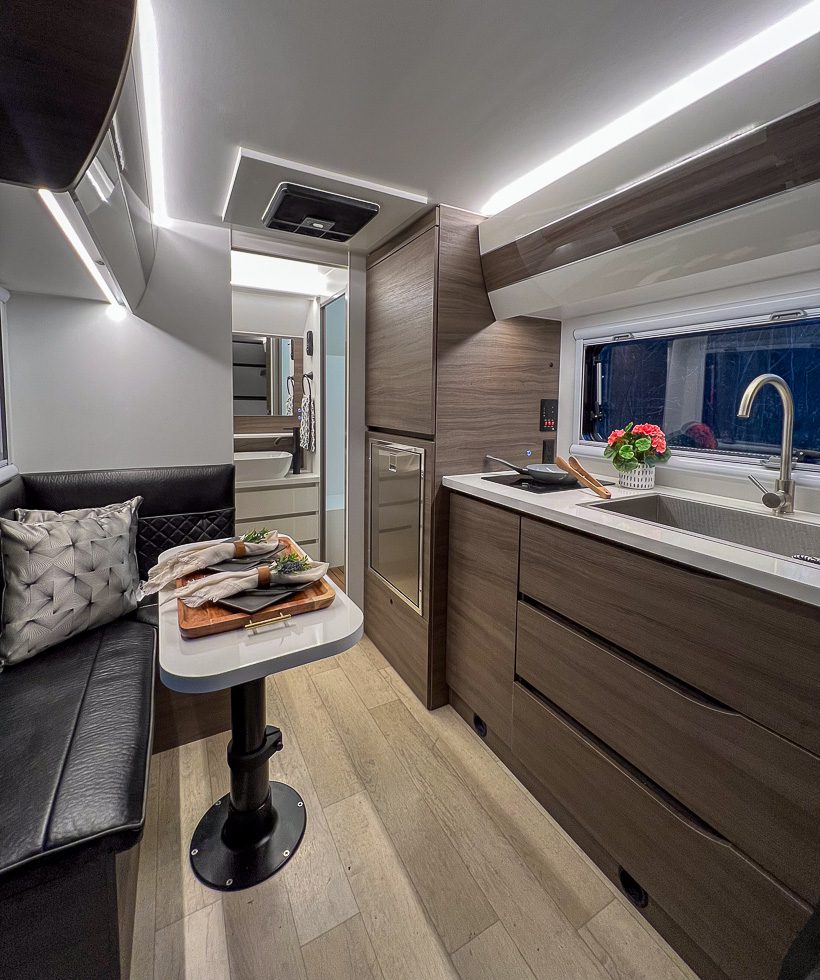

Luxury Meets the Backcountry.
Refined. Even Out Here.
Configured for How You Adventure.
Clearance to Conquer.

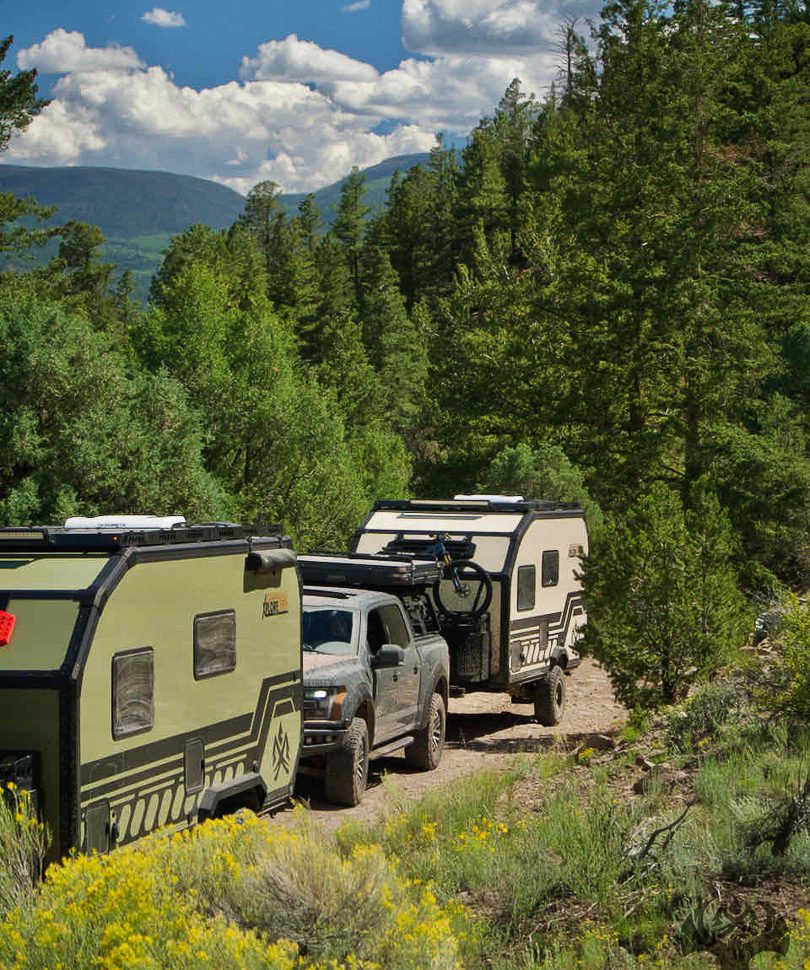

Go Where You Want. When You Want.

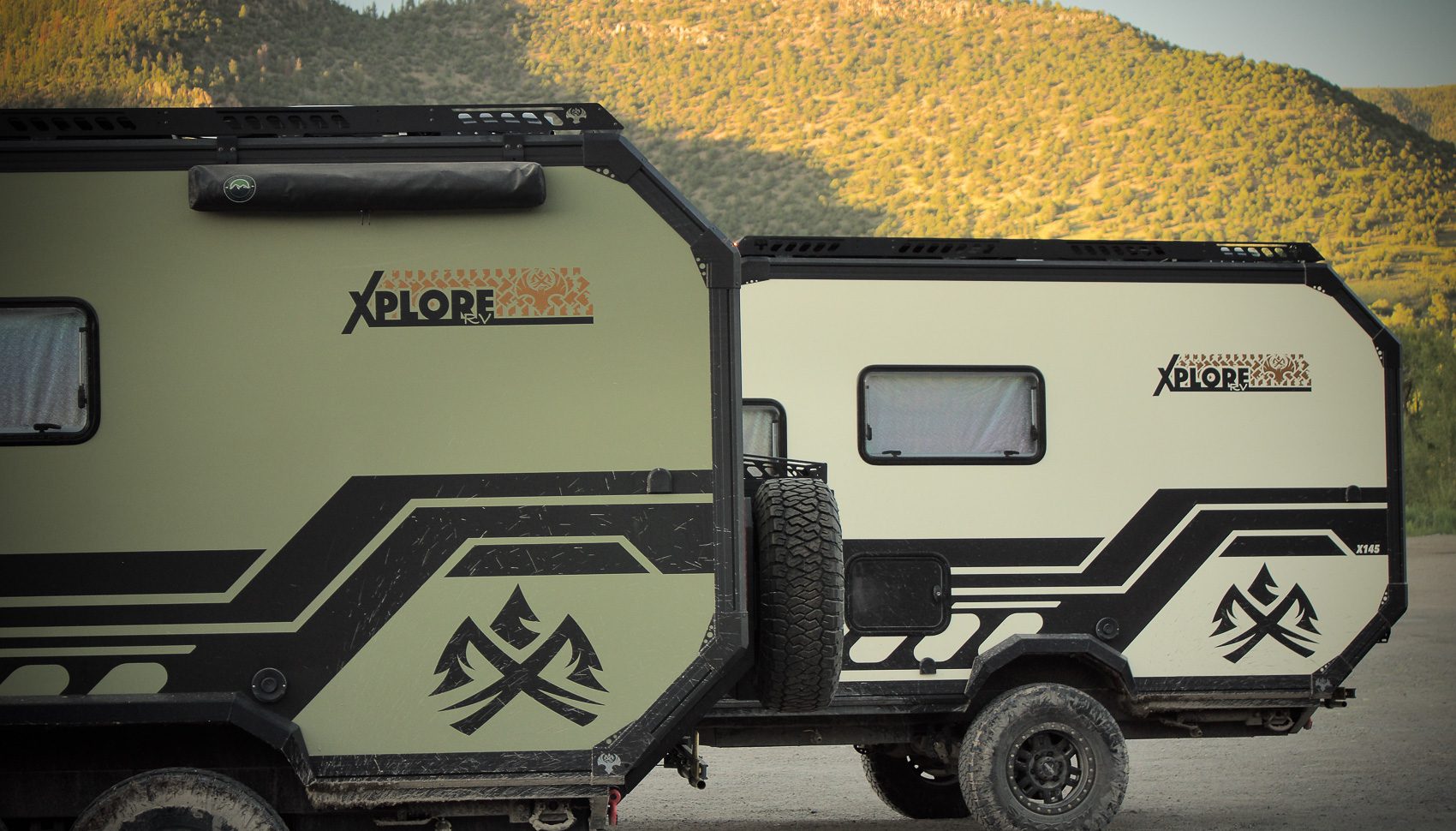

Find the Model That is Right for You

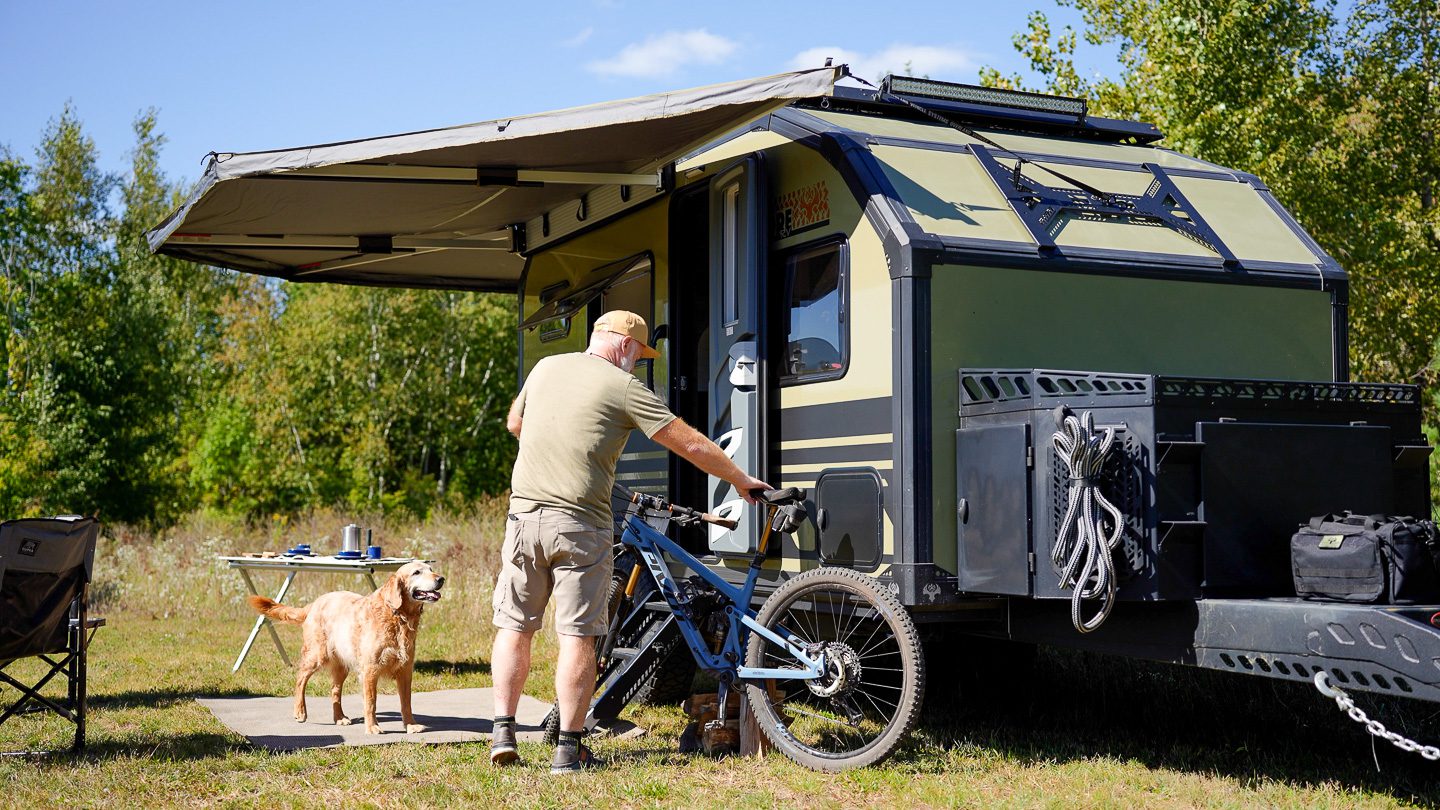

The Xplore Series X-145
The nimble, trail-proven basecamp built for couples who refuse to compromise.
- Overall Length (not including rear accessories)
- 21 ft 7 in
- Overall Height
- 9 ft 9 in
- Unit Dry Weight (base)
- 4400 lbs
- Tongue Weight (base)
- 490 lbs
- *Unit Dry Weight (w/all options)
- 5,120 lbs
- *Tongue Weight (w/all options)
- 645 lbs
- Solar Capacity (max w/options)
- 740 W
- Battery Capacity (max w/options)
- 1,104 Ah
- Suspension Type
- Adjustable Airbag
- Brake Type
- Adjustable Airbag
- Overall Width (including fenders)
- 91 in
- Interior Height (floor-to-ceiling)
- 75.5 in
- Interior Width (wall-to-wall)
- 78 in
- Sleeping Capacity
- 2+
- Tire Size
- 265/75 R16
- Ground Clearance (to frame)
- 24 in
- Ground Clearance (to skid plate)
- 21 in
- Fresh Tank Capacity
- 60 Gal
- Grey Tank Capacity
- 60 Gal
- LP Tank Capacity
- 40 Gal
- Refrigerator Capacity
- 3 cu ft (85 L)
- Furnace Output
- 20,400 BTU
- Air Conditioner (12V)
- 6,824 BTU
- Frame Material
- Tube Steel
- Frame Coating
- Powder Coat
- Max Trailer Capacity (GVWR)
- 6172 lbs

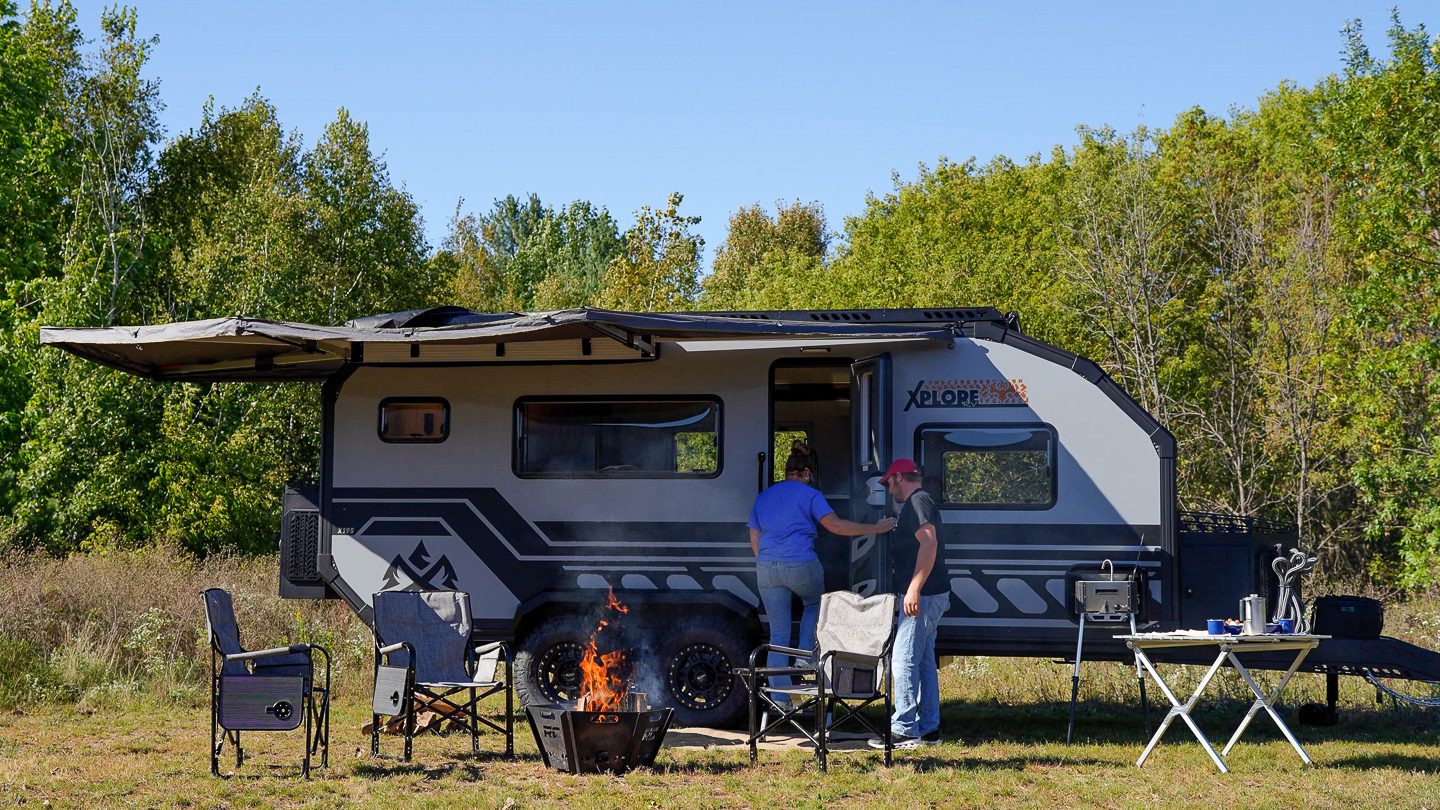

The Xplore Series X-195
The ultimate off-grid expedition trailer — more space, more power, no limits.
- Overall Length (not including rear accessories)
- 26 ft 1 in
- Overall Height
- 9 ft 9 in
- Unit Dry Weight (base)
- 5500 lbs
- Tongue Weight (base)
- 605 lbs
- *Unit Dry Weight (w/all options)
- 6550 Lbs
- *Tongue Weight (w/all options)
- 779 lbs
- Solar Capacity (max w/options)
- 1,240 Watts
- Battery Capacity (max w/options)
- 1,104 Ah
- Suspension Type
- Adjustable Airbag
- Brake Type
- Hydraulic Disc
- Overall Width (including fenders)
- 91 in
- Interior Height (floor-to-ceiling)
- 75.5 in
- Interior Width (wall-to-wall)
- 78 in
- Sleeping Capacity
- 3+
- Tire Size
- 265/75 R16
- Ground Clearance (to frame)
- 24 in
- Ground Clearance (to skid plate)
- 21 in
- Fresh Tank Capacity
- 60 Gal
- Grey Tank Capacity
- 60 Gal
- LP Tank Capacity
- (2x) 20 lb
- Refrigerator Capacity
- 6.9 cu ft (195 L)
- Furnace Output
- 20,400 BTU
- Air Conditioner (12V)
- 6,824 BTU
- Frame Material
- Tube Steel
- Frame Coating
- Powder Coat w/e-coat Primer
- Max Trailer Capacity (GVWR)
- 9920 lbs
Your Questions Answered
Find the answers to most common questions. If you don’t see your question listed, let us know so we can add it to our list. We want our customers to be informed so you can enjoy your adventure without stressing over the small things.
View All FAQs

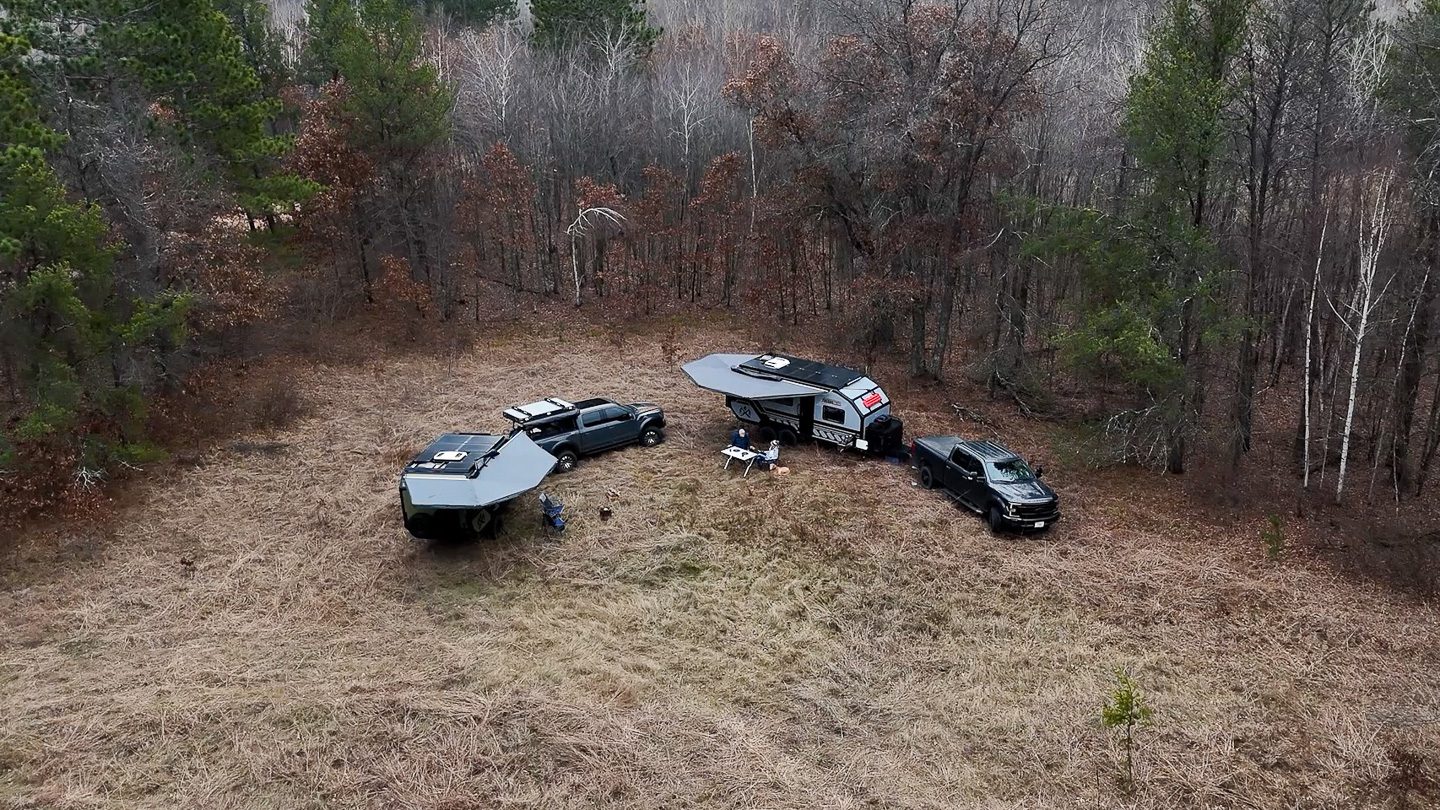

The Xplore Series was designed for adventurers who refuse to let a season, a road condition, or a forecast tell them where they can't go. Whether you're chasing remote backcountry trails or setting up camp in sub-zero temperatures, the Xplore Series is engineered to keep up — and keep you comfortable while doing it. If you've ever wanted to go further and stay longer, this is your trailer.
Made In The USA
The Imperial Outdoors Xplore Series starts where your adventures do — right here in the USA. Assembled in Saint Croix Falls, Wisconsin, each trailer is built by a team that takes personal pride in the craft. We source the best components available, prioritizing local partners wherever possible, because we believe the people who build your trailer should care just as much about it as you do.

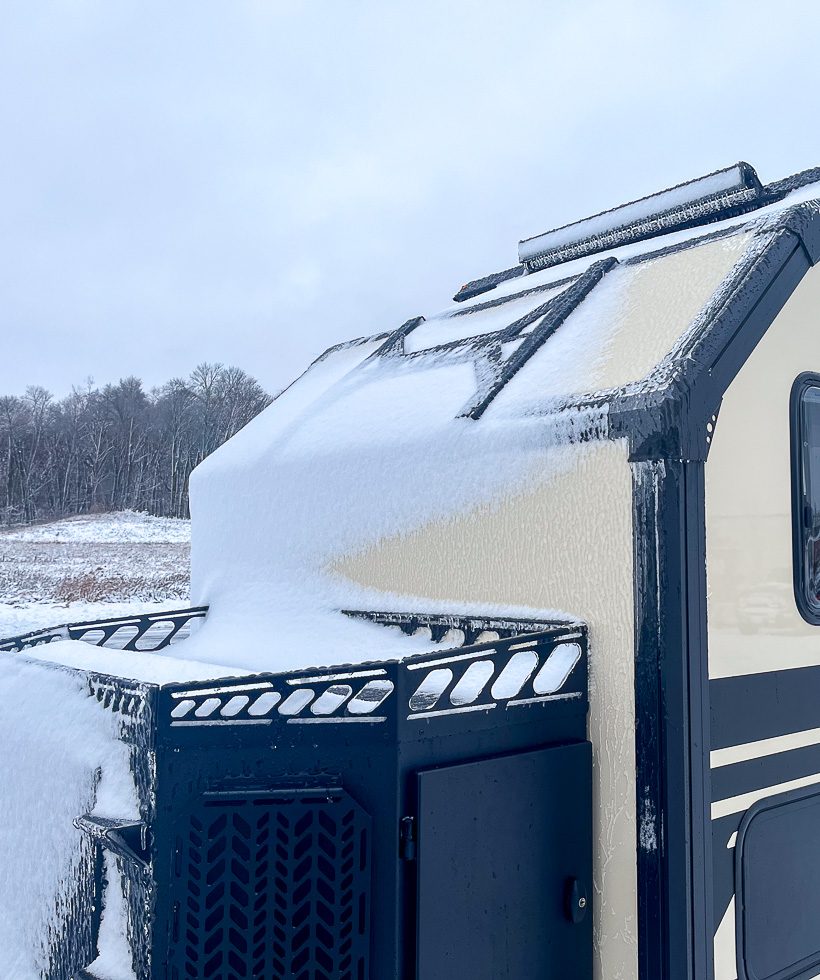

All Season Comfort
Most trailers ask you to plan around the weather. Imperial Outdoors built the Xplore Series was built so you never have to. Tested to maintain interior comfort down to -40°F, every detail — from our nearly 3" insulated wall panels to our Truma Combi heating system — was chosen with one goal in mind: making sure the calendar is never the reason you stay home.

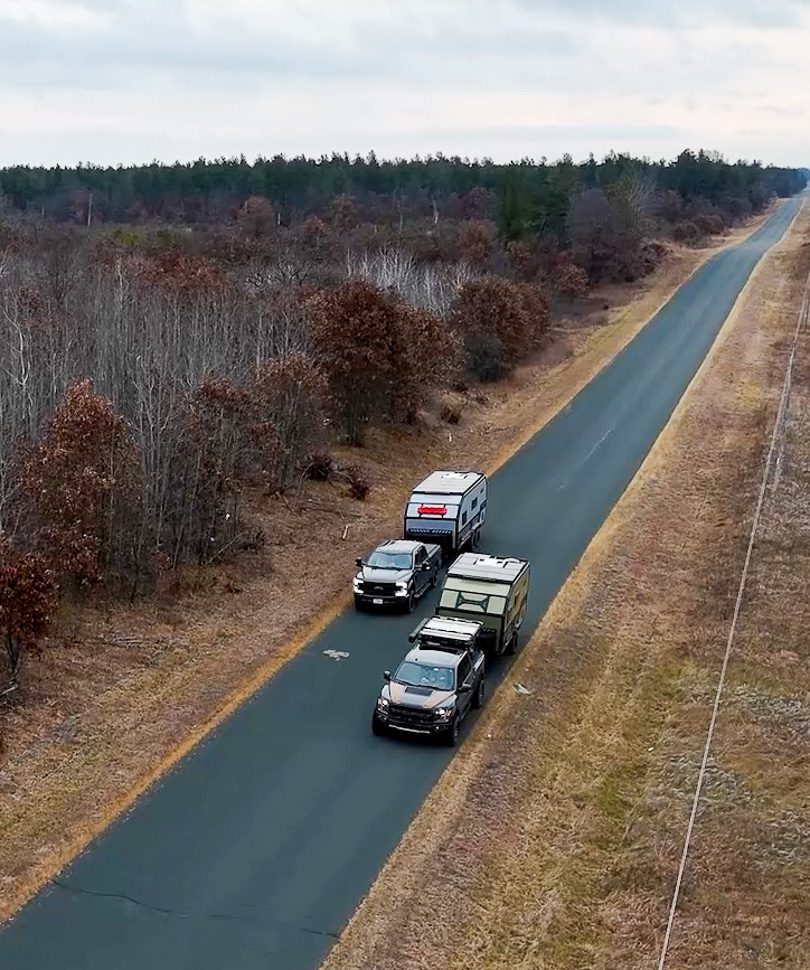

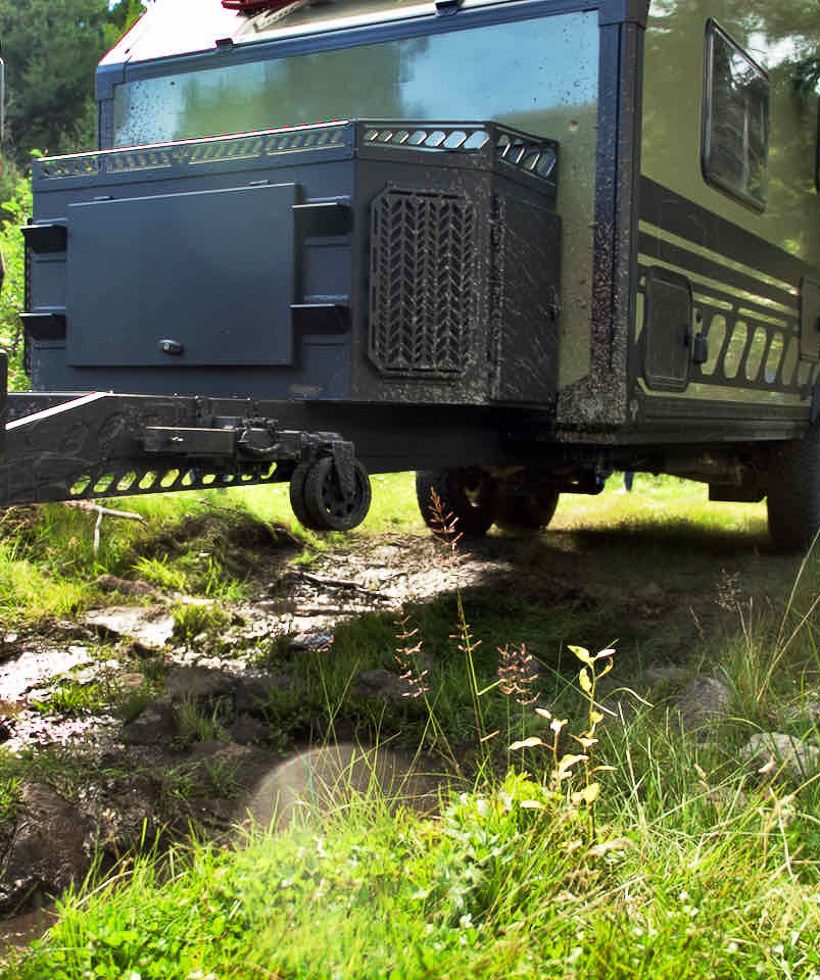

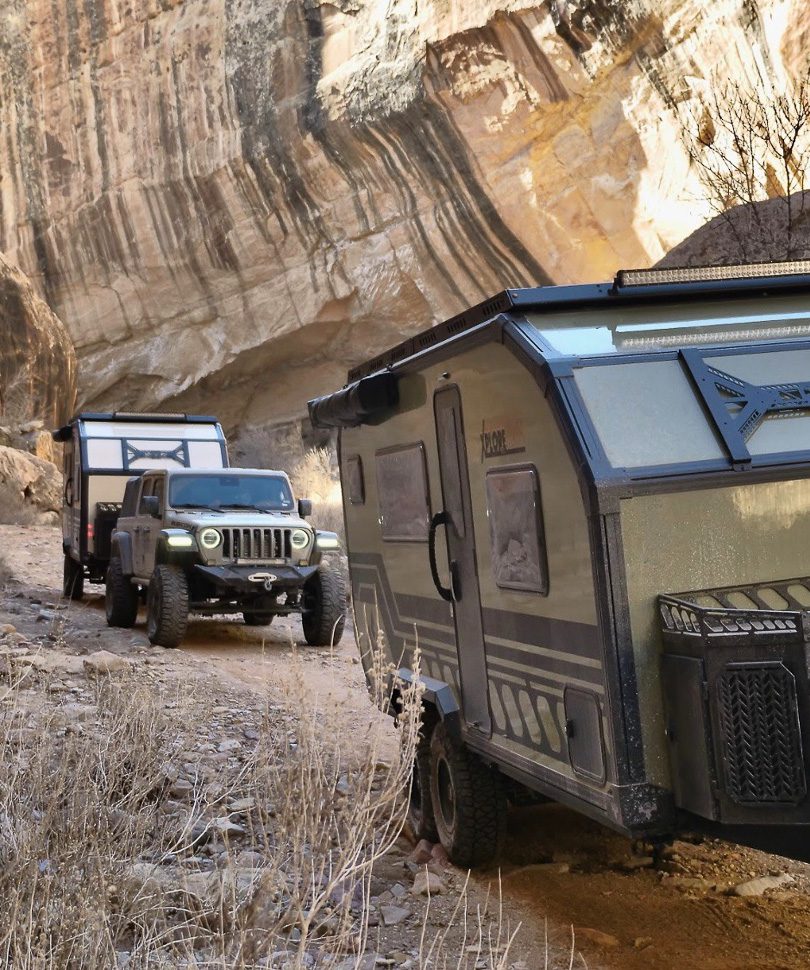

Engineered for Off Road.
Conquer the trails with high ground clearance and departure angles in the Xplore Series. Superior offroad engineering, features up to 90-degree turning angles allow for maneuvering tight corners that limit others. The tire width is designed to match the width of your truck so navigating narrow 2-track trails are a breeze.

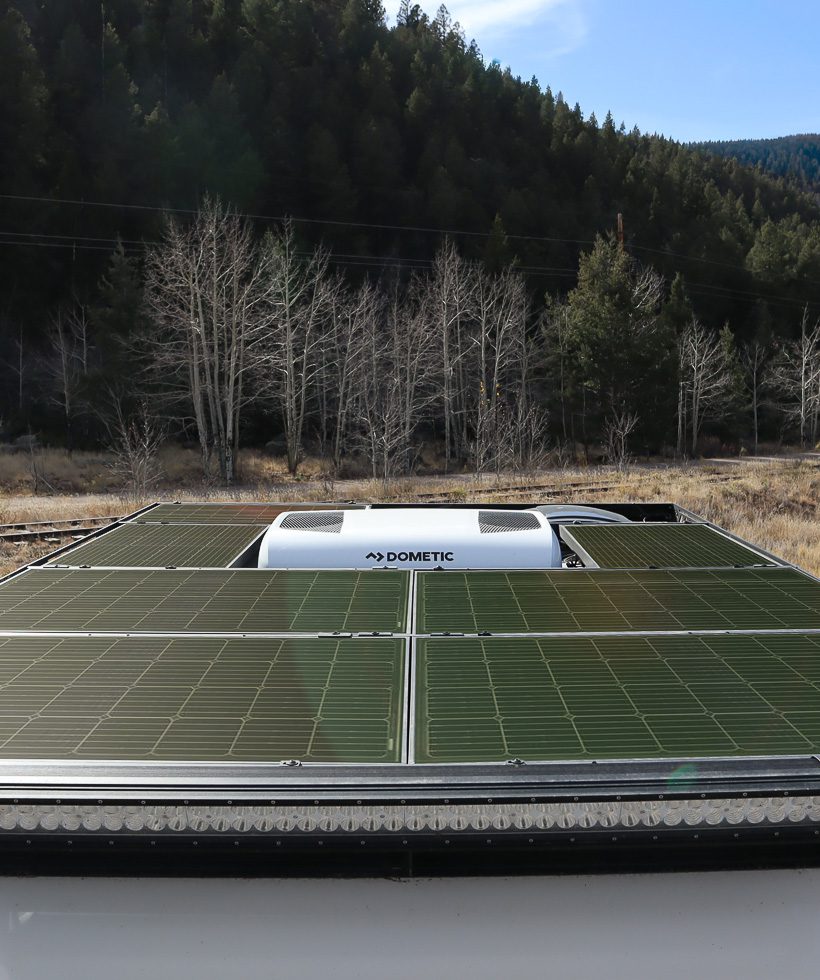

Reliable Power
The Xplore Series off-road campers are engineered for those who seek off-grid independence with confidence. With options up to 1,240W of solar and 1,104 Ah of advanced Lithium battery capacity, the Xplore Series is built to outperform most allowing you to travel further and stay longer.

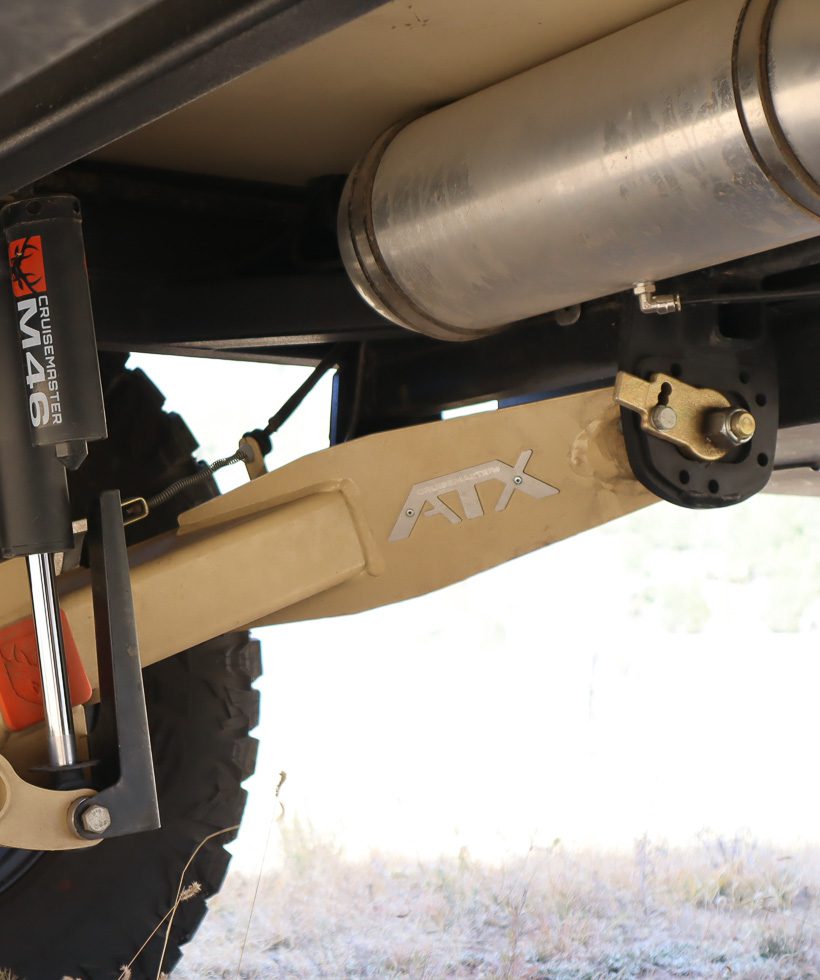

Heavy-Duty Air Ride Suspension
The Cruisemaster ATX with Air and Disc brakes is widely considered the pinnacle of off-road camper trailer suspension and is standard in the Xplore Series campers. Premium off-road performance and superior stopping power ensures you can safely get to those remote destinations you’ve dreamed of.

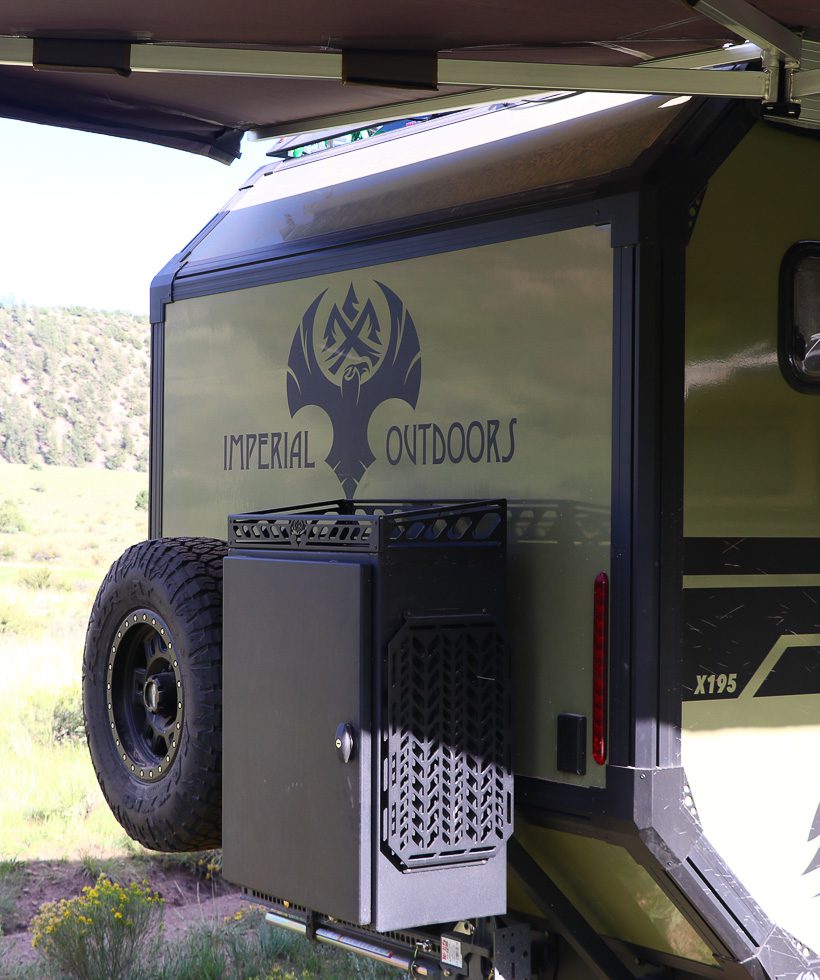

Long Range Exploration
The Xplore Series adventure trailers are designed to extend your adventures with generous storage solutions inside and out that are carefully integrated to provive plenty of room for all of your gear and essentials you need. Experience the freedom to go further and stay off-grid longer than ever before.
