Adventure Doesn't Wait.
Neither Should You.
Pack up. Head out. The Sport Series was built for mornings exactly like this one.
Everything You Need. Nothing You Don't.
Capable by Design. Comfortable by Choice. The Sport Series is Imperial Outdoors' answer to the adventurer who wants serious off-road capability and four-season comfort without the premium price tag of a larger rig. Built on a reinforced steel chassis with Cruisemaster independent suspension, nearly 3" of composite insulation, and a fully appointed interior complete with real-wood cabinetry and a Truma Combi heating system, the Sport Series delivers everything you need for extended off-grid adventures — and nothing you don't. It's the smarter way to get out further, stay longer, and do it all in comfort.

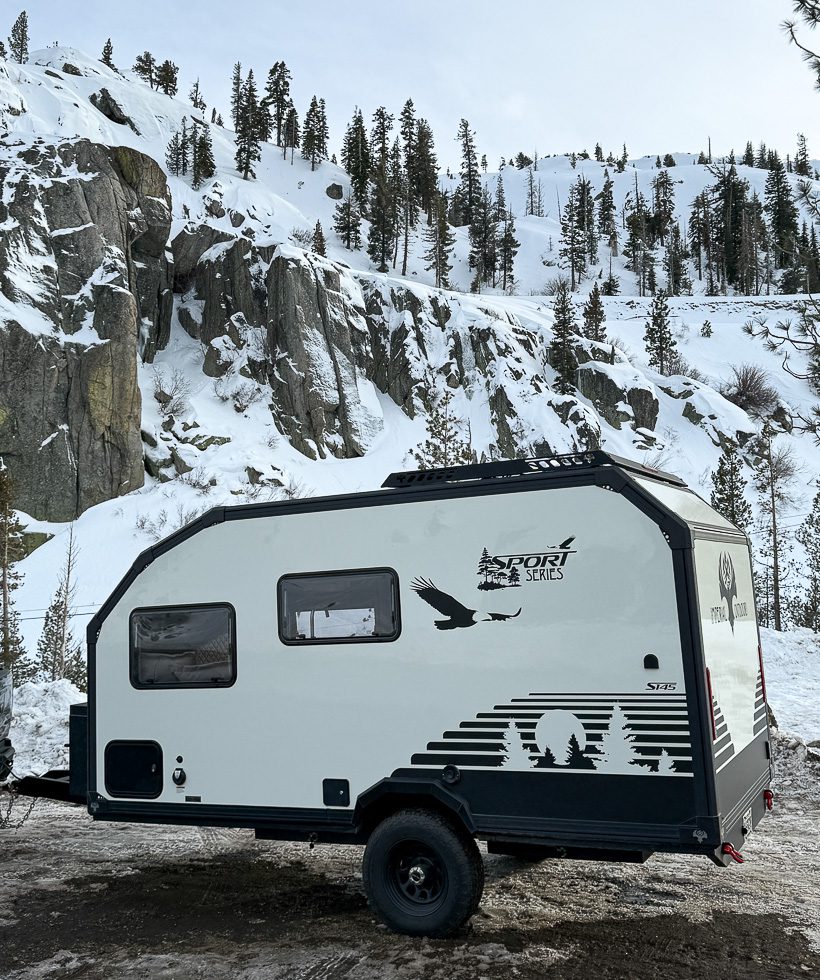

Trail Ready. From the Ground Up.

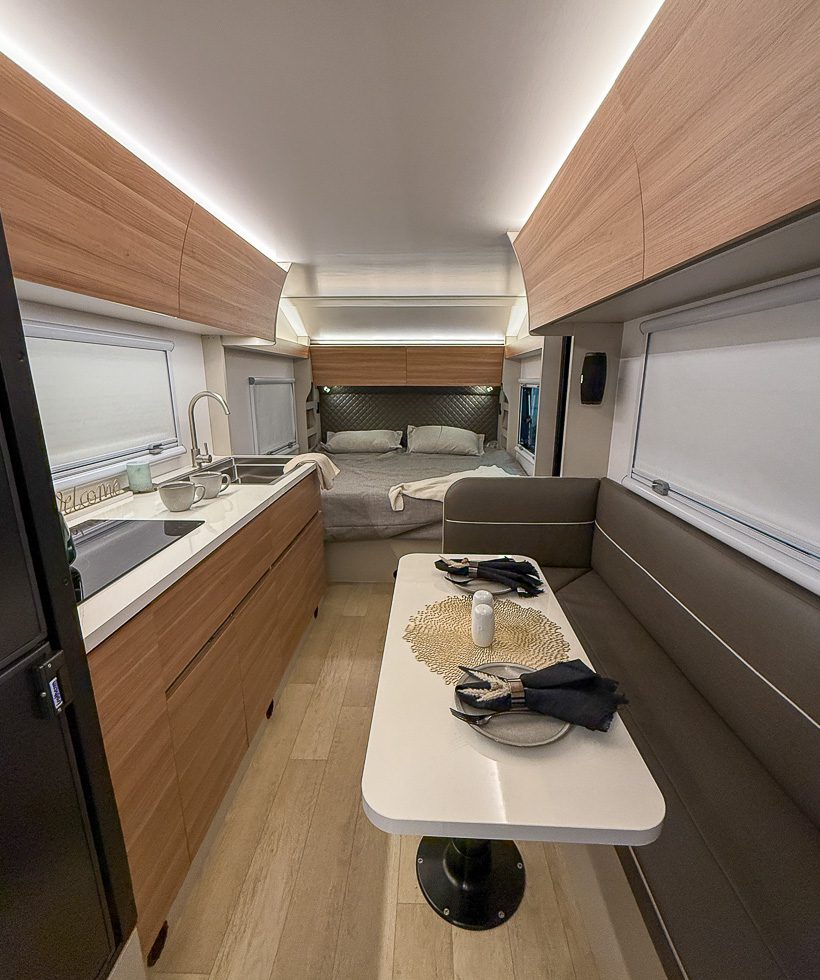

Home. Wherever You Park It.
The View Without the Cold.

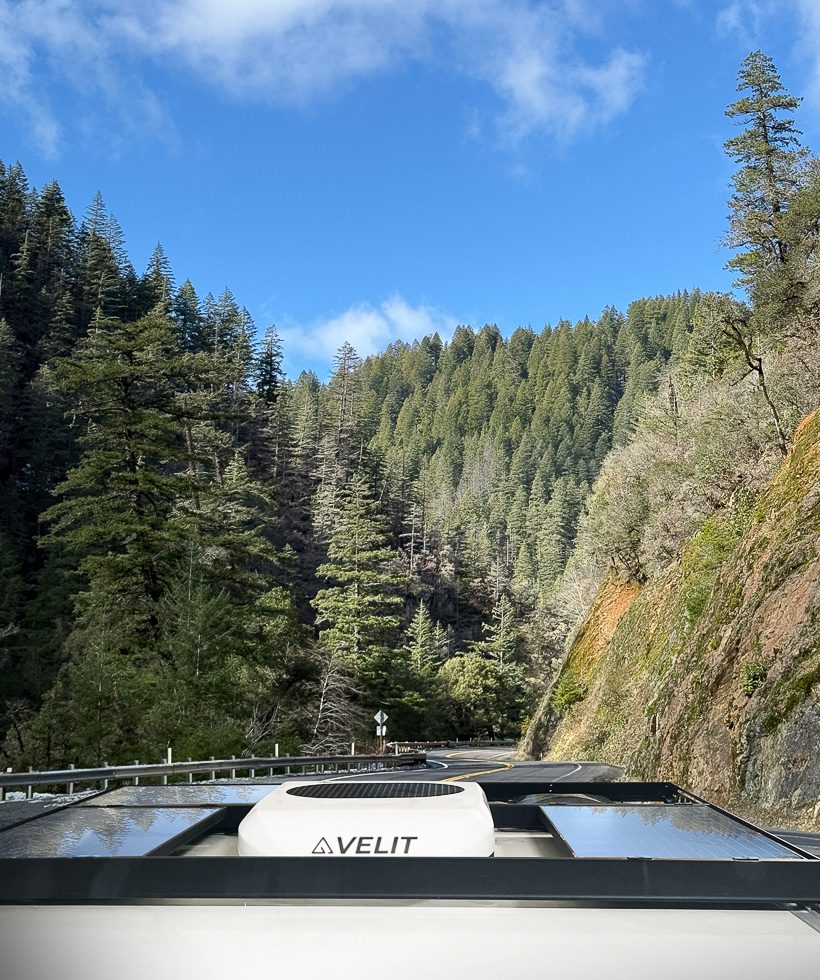

Power. Wherever You Are.

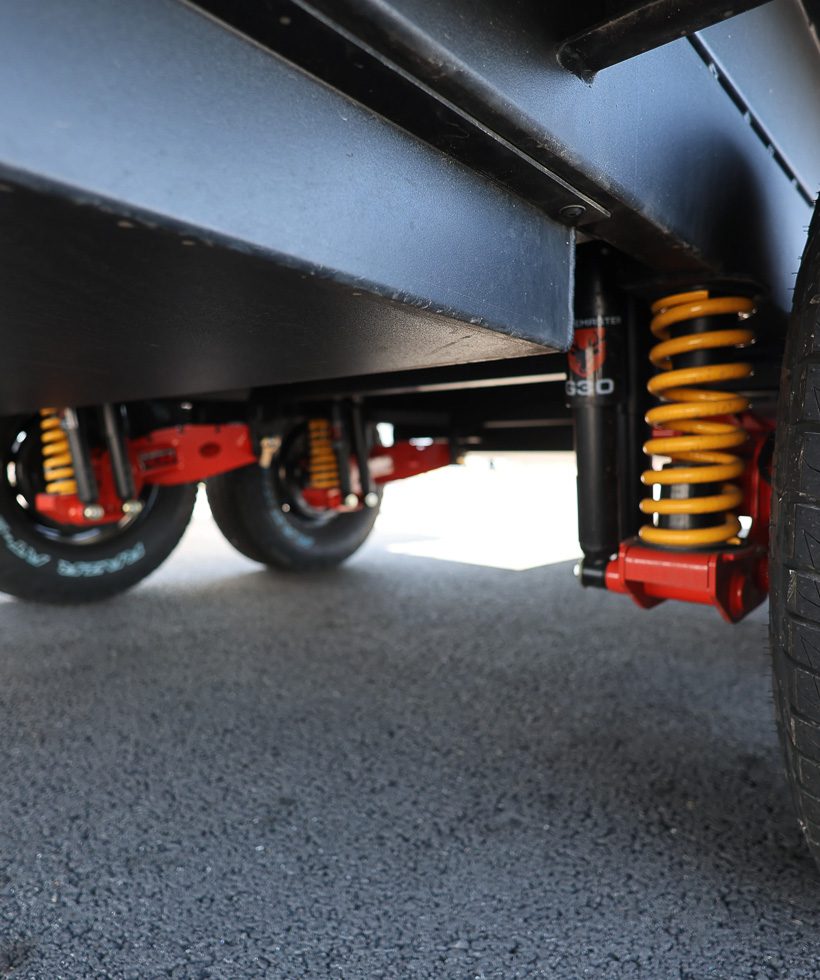

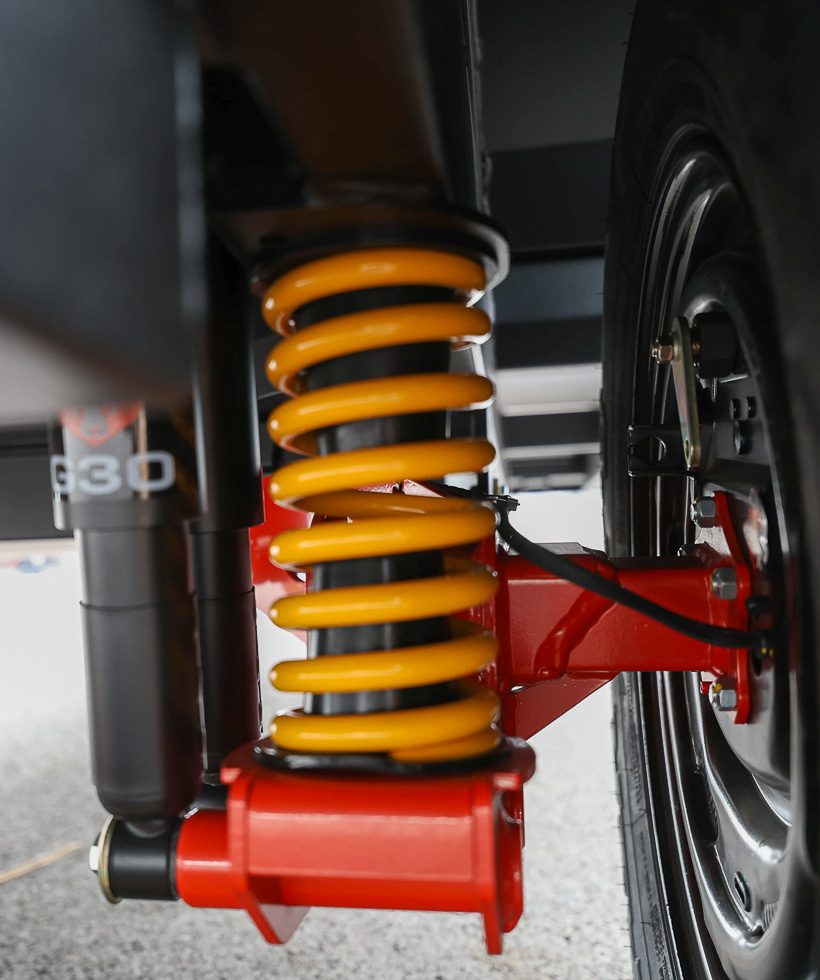

Independent. Capable. Proven.

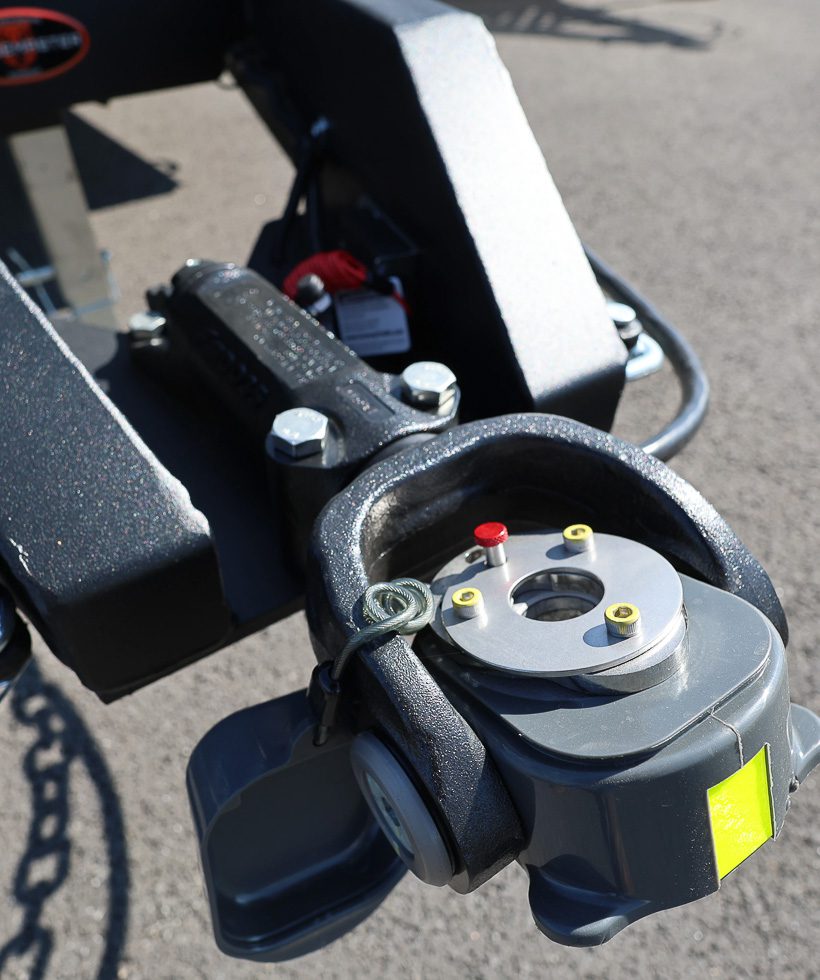

Pivot. Swivel. Conquer.

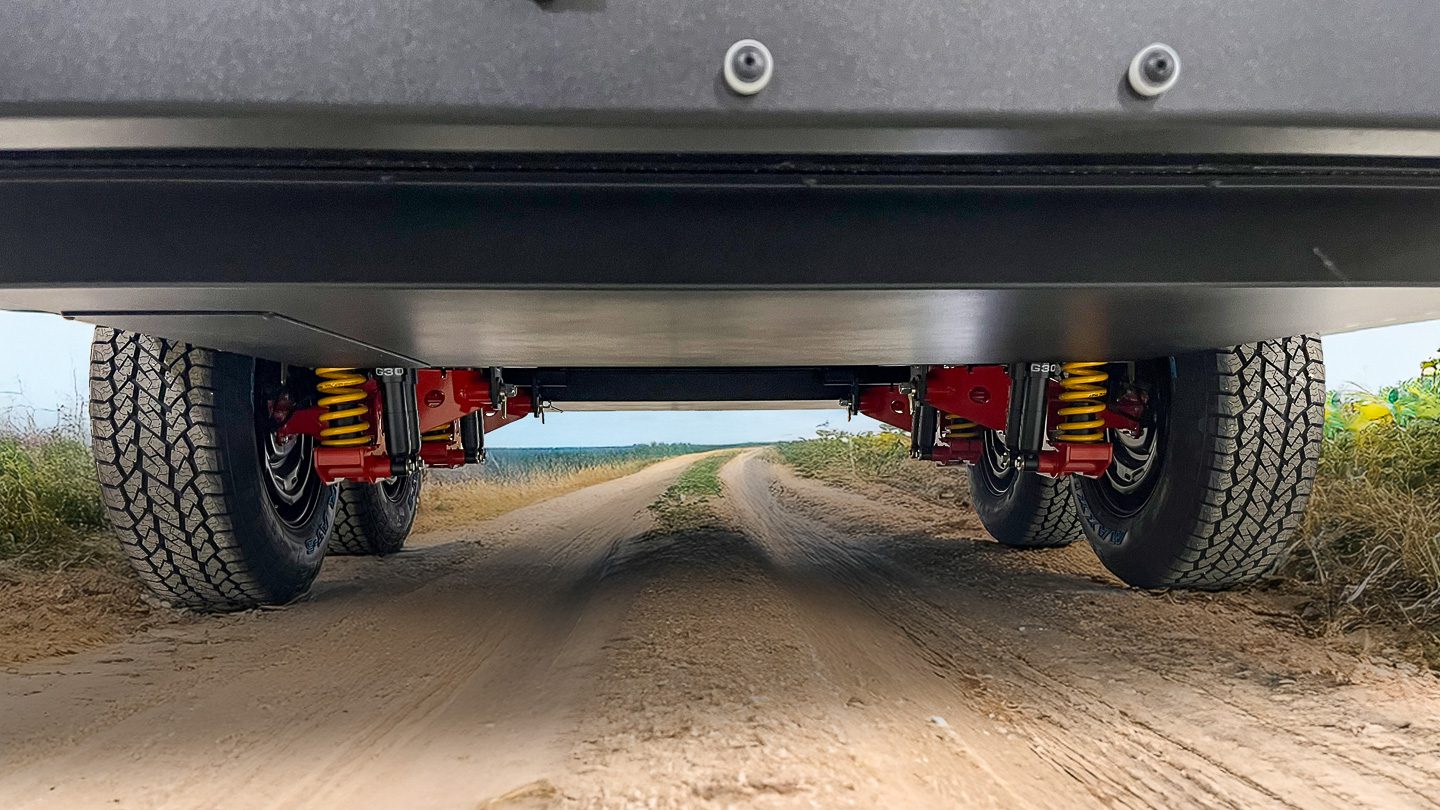

Go Where You Want. When You Want.
Find the Model That is Right for You

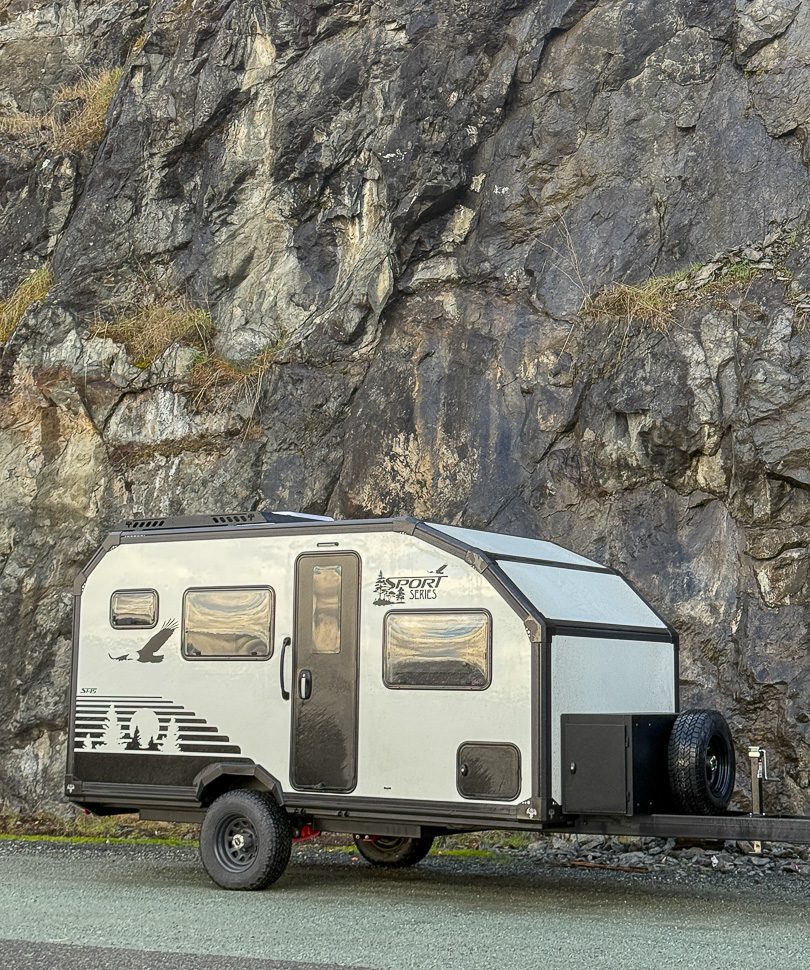

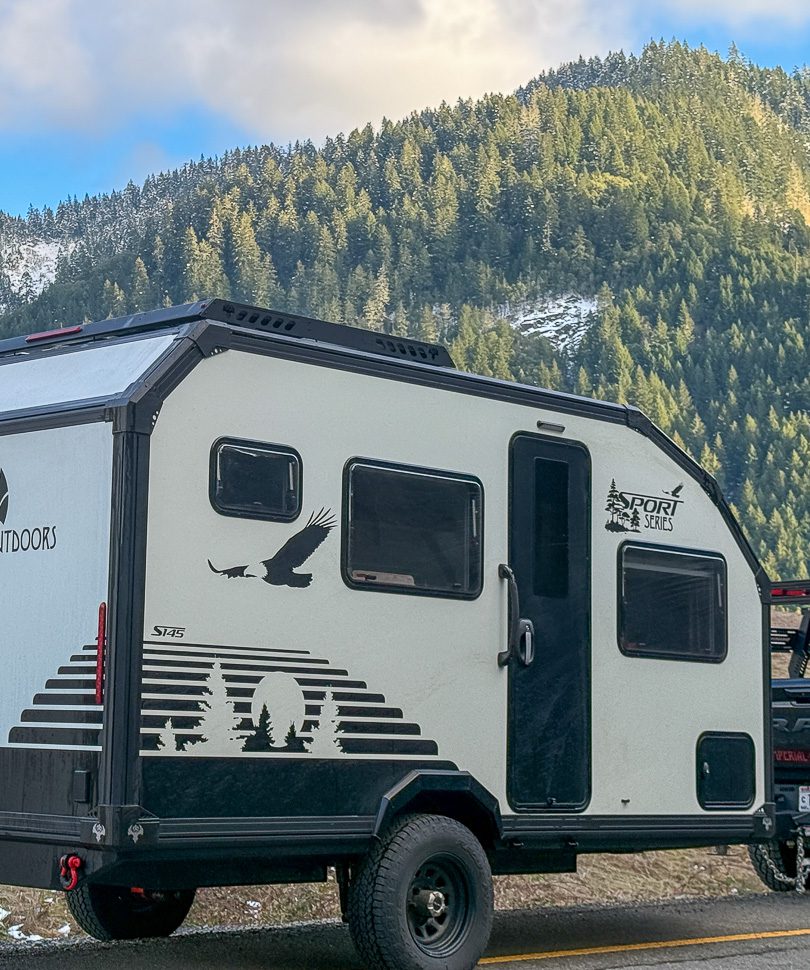

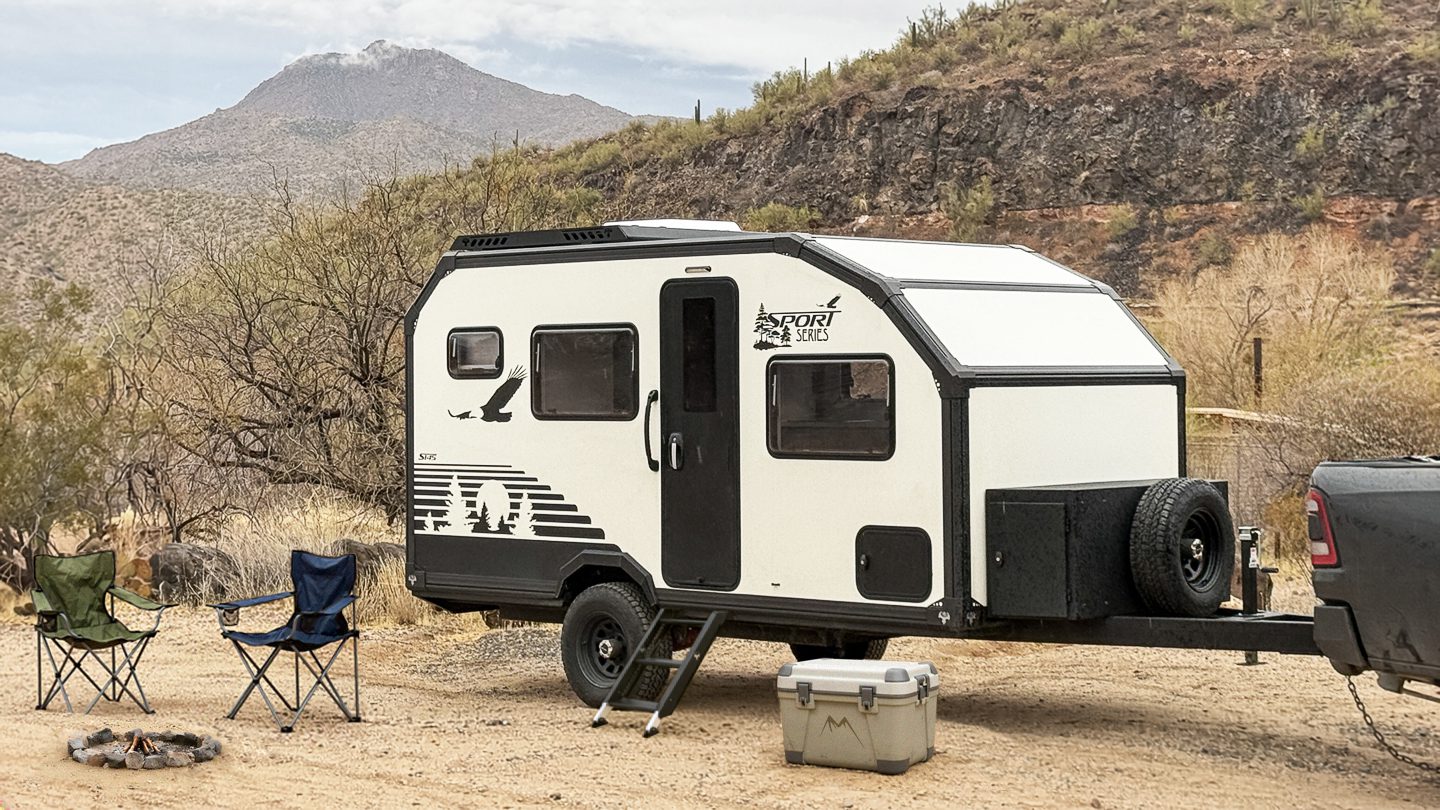

The Sport Series S-145
Big adventure capability in a lightweight, trail-ready package.
- Overall Length (not including rear accessories)
- 20 ft 7 in
- Overall Height
- 9 ft 6 in
- Unit Dry Weight (base)
- 3900 lbs
- Tongue Weight (base)
- 460 lbs
- *Unit Dry Weight (w/all options)
- 4600 lbs
- *Tongue Weight (w/all options)
- 545 lbs
- Solar Capacity (max w/options)
- 740 W
- Battery Capacity (max w/options)
- 600 Ah
- Suspension Type
- Adjustable Airbag
- Brake Type
- Hydraulic Disc
- Overall Width (including fenders)
- 87 in
- Interior Height (floor-to-ceiling)
- 75.5 in
- Interior Width (wall-to-wall)
- 78 in
- Sleeping Capacity
- 2+
- Tire Size
- 245/75 R16
- Ground Clearance (to frame)
- 21 in
- Ground Clearance (to skid plate)
- 18 in
- Fresh Tank Capacity
- 60 Gal
- Grey Tank Capacity
- 60 Gal
- LP Tank Capacity
- (2x) 20 lb
- Refrigerator Capacity
- 4.9 cu ft (140 L)
- Furnace Output
- 20,400 BTU
- Air Conditioner (12v)
- 6500 BTU
- Frame Material
- Tube Steel
- Frame Coating
- Powder Coat w/e-coat Primer
- Max Trailer Capacity (GVWR)
- 5454 lbs

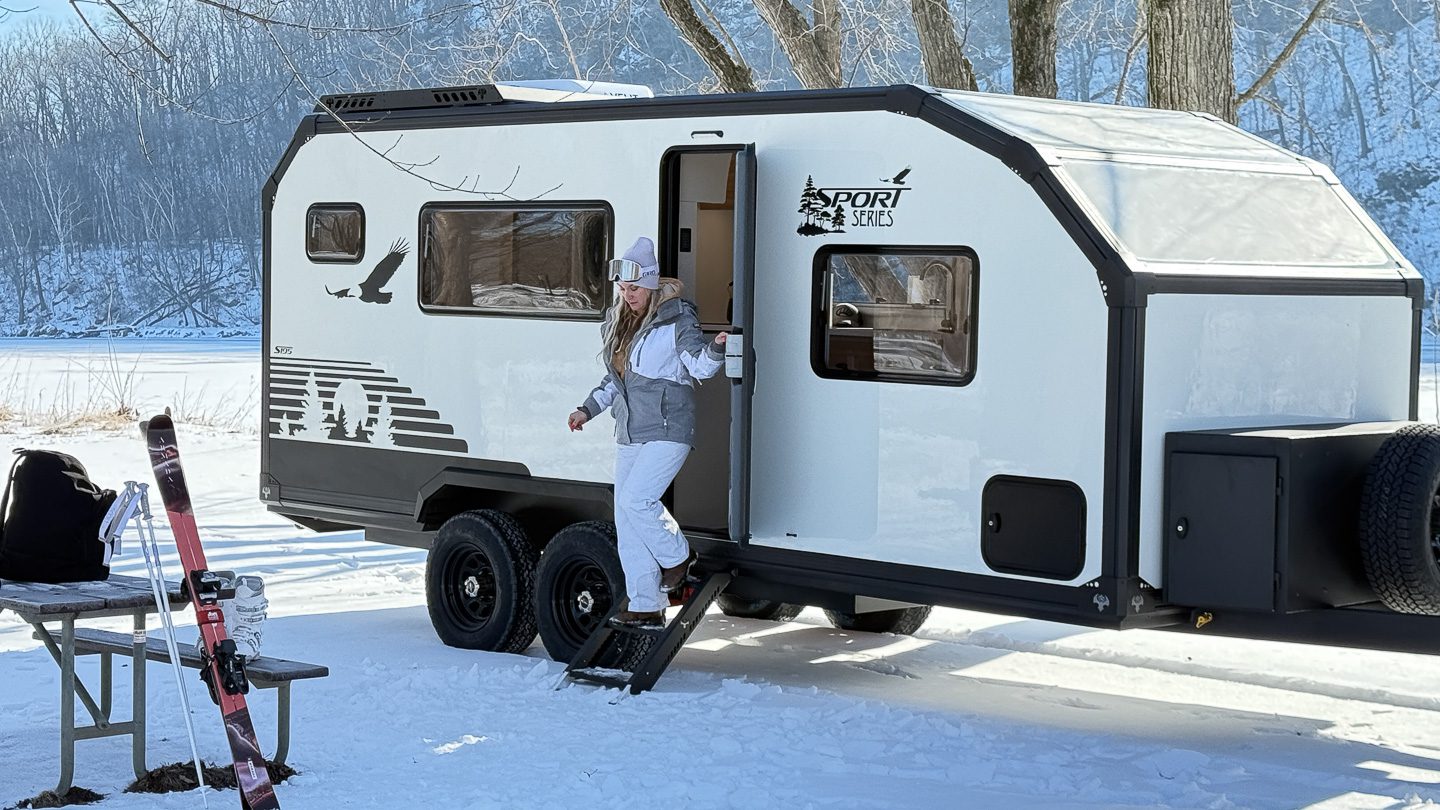

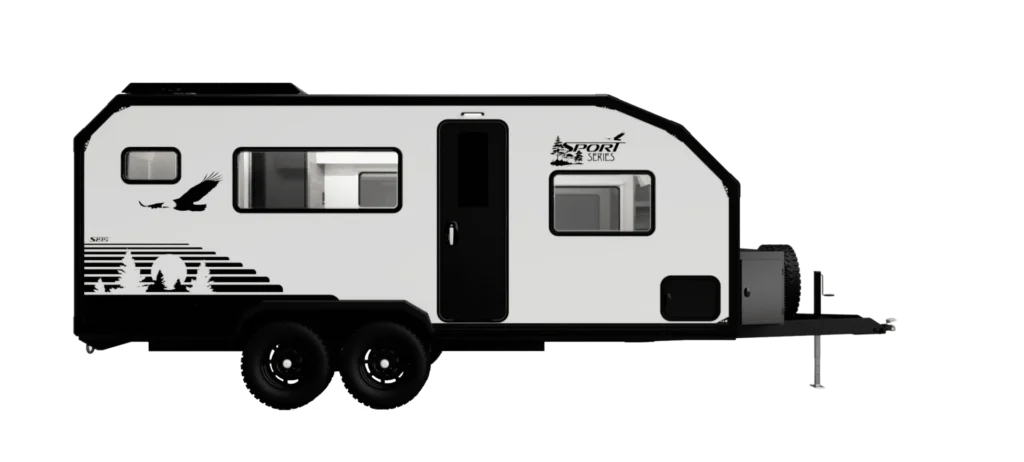

The Sport Series S-195
Everything the backcountry demands, with room for everything
- Overall Length (not including rear accessories)
- 25 ft 1 in
- Overall Height
- 9 ft 6 in
- Unit Dry Weight (base)
- 4725 lbs
- Tongue DRY Weight (base)
- 525 lbs
- *Unit Dry Weight (w/all options)
- 5,400 lbs
- *Tongue Weight (w/all options)
- 650 lbs
- Solar Capacity (max w/options)
- 740 W
- Battery Capacity (max w/options)
- 600 Ah
- Suspension Type
- Coil Spring
- Brake Type
- Electric Drum
- Overall Width (including fenders)
- 87 in
- Interior Height (floor-to-ceiling)
- 75.5 in
- Interior Width (wall-to-wall)
- 78 in
- Sleeping Capacity
- 3+
- Tire Size
- 245/75 R16
- Ground Clearance (to frame)
- 21 in
- Ground Clearance (to skid plate)
- 18 in
- Fresh Tank Capacity
- 60 Gal
- Grey Tank Capacity
- 60 Gal
- LP Tank Capacity
- (2x) 20 lb
- Refrigerator Capacity
- 6.9 cu ft (195 L)
- Furnace Output
- 20,400 BTU
- Air Conditioner (12V)
- 6,500 BTU
- Frame Material
- Tube Steel
- Frame Coating
- Powder Coat w/e-coat Primer
- Max Trailer Capacity (GVWR)
- 8000 lbs
Your Questions Answered
Find the answers to most common questions. If you don’t see your question listed, let us know so we can add it to our list. We want our customers to be informed so you can enjoy your adventure without stressing over the small things.
View All FAQs
Absolutely. The Sport Series is built on a reinforced steel perimeter frame with Cruisemaster CRS independent suspension, 31" all-terrain tires, and 18 inches of ground clearance. This isn't a trailer that tolerates rough roads — it's one that was designed for them. The DO35 articulating hitch keeps you stable and confident through even the most unpredictable terrain.
Made In The USA
The Imperial Outdoors Sport Series starts where your adventures do — right here in the USA. Assembled in Saint Croix Falls, Wisconsin, each trailer is built by a team that takes personal pride in the craft. We source the best components available, prioritizing local partners wherever possible, because we believe the people who build your trailer should care just as much about it as you do.
All Season Comfort
Most trailers ask you to plan around the weather. Imperial Outdoors built the Sport Series was built so you never have to. Tested to maintain interior comfort down to -40°F, every detail — from our nearly 3" insulated wall panels to our Truma Combi heating system — was chosen with one goal in mind: making sure the calendar is never the reason you stay home.
Built for the Backcountry
The Sport Series was engineered to go where paved roads don't. With a reinforced steel perimeter frame, Cruisemaster independent suspension, a DO35 articulating hitch, and 31" all-terrain tires delivering 18 inches of ground clearance, the Sport Series handles rough terrain with confidence — so you can focus on the adventure, not the road.
Unhook. Unplug. Unwind.
With rooftop solar, lithium battery storage, and a 12V air conditioner that runs without shore power, the Sport Series doesn't need a campground hookup to keep you comfortable. Stay as long as you want, wherever you want — completely on your own terms.
Home Was Never This Far Off the Grid
Step inside the Sport Series and you'll find a space that feels nothing like a trailer. Real-wood cabinetry, a full dry bath with separate shower, and a thoughtfully designed living area mean you're not giving up the comforts of home — you're just taking them somewhere more interesting.
Built to Last. Built to Perform.
Every Sport Series trailer starts with a powder-coated steel perimeter frame and rugged composite cabin construction — materials and methods chosen for one reason: longevity. At Imperial Outdoors, quality isn't a feature we advertise, it's a standard we build to. Because a trailer that's built right the first time is one you'll be proud to own for years to come.
Ready to Start Your Adventure?
Get in touch with one of our Authorized Imperial Outdoors® dealers!
Request Quote
