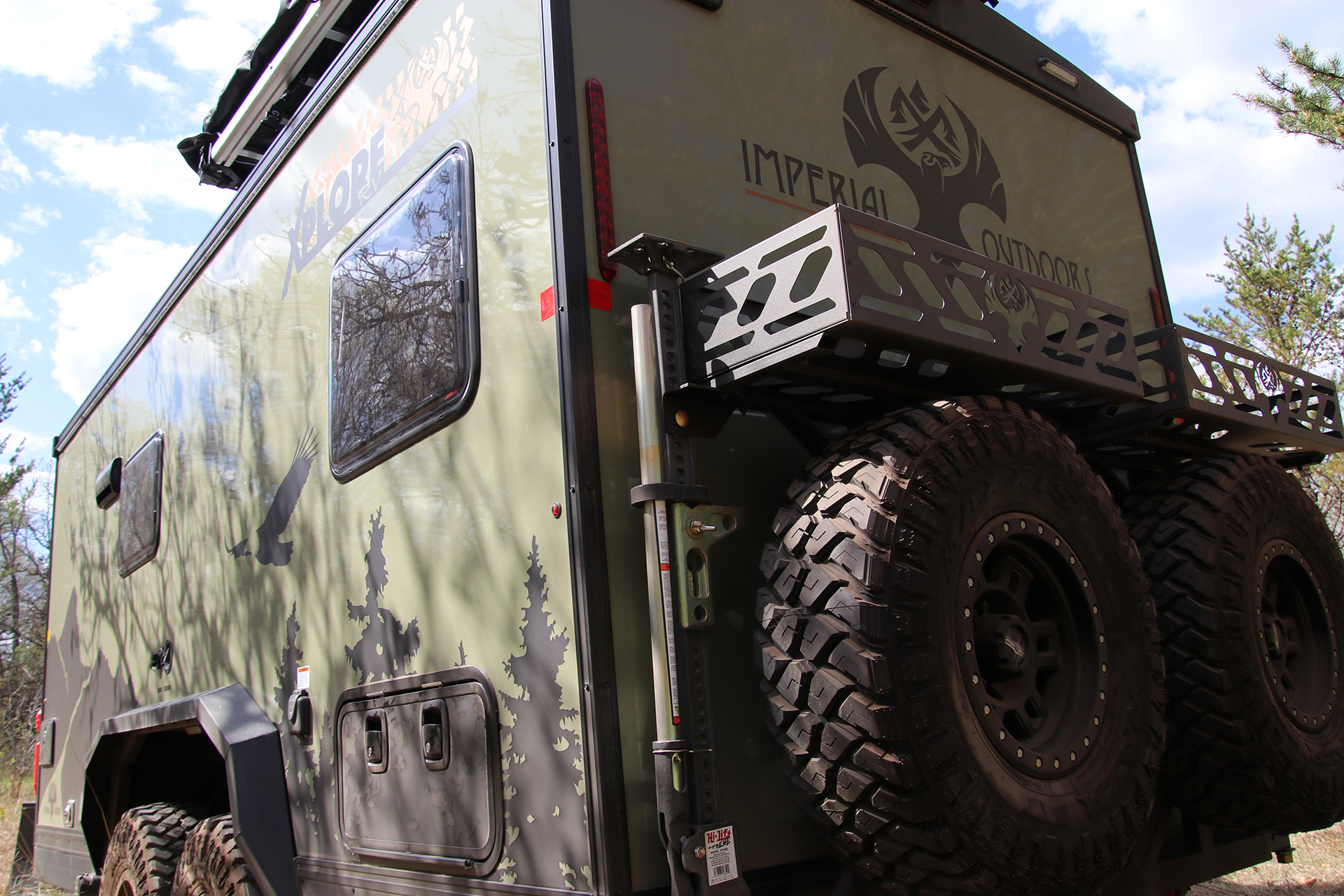

All-Weather, All-Terrain Home Away From Everything!

XploreRv is taking off-grid RVing to another level. Imperial encompasses the cold weather versatility and cabin-style comfort of a Midwest Fish House with the rugged capability of a true, off-road, off-grid camper. This go-anywhere, anytime rig can be your mobile lodge or mountaintop adventure base camp for the family. Click below to view the detailed features & option packages. Ask your dealer about the XploreRV X22 today!


  • 4-Season Capability to -40˚F
  • Hydraulic Ride Height Adjustment (12” to 20” of ground clearance)
  • Pass-through Storage
  • Solid Surface Countertops
  • Sleeps 3-4



Standard Features (Model Specific)

  • Off-road reinforced, coated steel frame
  • Obstruction Free Under Carriage
    (all components above bottom of frame rail)
  • 2in Receiver Hitch for accessories
  • D-Ring recovery points
  • CRANE NOBLE® Sheet Glass Seamless Exterior Sidewalls
  • Innovative aluminum stud exterior wall construction
  • 1pc, fully insulated composite floor and fully walkable composite roof
  • Twin 20lb LP Fuel Tanks
  • Cold Weather LP Furnace
  • Low-profile Roof-Mounted A/C
  • LCD TV
  • Bluetooth Speaker
  • Full Kitchen w/Range, cooktop, full size refrigerator and kitchen sink
  • Solid Surface Countertops
  • Full Bathroom w/shower and dry flush toilet
    (no black water tank to deal with in the back-country)
  • Convertible Dinette
  • Full Size Bed (RV Full) w/bedding
  • LED interior & exterior lighting
  • Exterior LED Perimeter Lighting
  • Off-Road Rock Lighting
  • Conveniently placed 120V outlets & USB charging ports
  • Roof-mounted MaxxAir ventilation system
  • Full Length Awning
  • Exterior Pass-Through Storage
  • Exterior 120V Power Outlet
  • RVIA Certified

Xtreme Package (Standard Upgrades)

  • Hydraulic Ride Adjustment (12” Ground Clearance Road Height / 20” GC Off-Road Height)
  • 33×10.5 R15 Off Road Tires
  • Front Rubber Rock Guard
  • Dual full size spare tires mounted to rear swing-away carriers.
  • On-board air compressor
  • Custom Roof rack (w/3 cross-members)
  • Heavy Duty Ladder
  • Lock+Roll Off-Road Hitch
  • Thermal Acrylic Windows
  • Dual 100ah Lithium Batteries
  • Heated/Insulated Water Storage Tanks
  • On-demand hot water
  • 200W Roof Mounted Solar System
  • MPPT Solar Control & Battery Monitor
  • Back-up Camera Prep
  • Outdoor Shower

Package Options

Blizzard Package (B)

  • Twin 30lb LP Fuel Tanks
  • Roof Rack Utility Basket
  • Ski Rack
  • LP Tank Heater

Wilderness Package (W)

  • Hi-Lift Jack
  • Rotopax Fuel Container
  • Rear Spare-Tire Mounted Utility Basket (2 total)
  • Roof-Top Utility Basket

Wilderness Max Package (M)

  • Hi-Lift Jack
  • Rotopax Fuel Container
  • Rear Spare-Tire Mounted Utility Basket (2 total)
  • Imperial Premium Rooftop Tent

Off Grid Max (+)

• QUAD 120ah Lithium Batteries (480ah)
• 2000W Inverter & Monitor Panel
• Upgraded 380W Roof Mounted Solar System

Download Features


Overall Length (including spare tires) 23 ft 4 in
Overall Width (including fenders) 93in
Overall Height (on-road height / off-road height) 112 in / 120 in
Unit Weight 5370 lbs
Max Trailer Capacity (GVWR) 8820 lbs
Tongue Weight 425 lbs
Cargo Capacity 3450 lbs
Axle Weight Rating 5000 lbs
Tire Size 33×10.5 R15
Interior Height (floor-to-ceiling) 76 in
Interior Width (wall-to-wall) 78 in
Ramp Door Dimensions N/A
Ramp Door Weight Capacity N/A
Garage Dimensions (Min/Max) N/A
Fresh Tank Capacity 30 Gal
Grey Tank Capacity 30 Gal
Refrigerator Capacity 10 cu ft
LP Tank Capacity (2x) 20 lb
Furnace 18,000 BTU
Air Conditioner 13,500 BTU
Battery Capacity 100 Ah Lithium (x2)
Solar Output 200 W
Ground Clearance (on-road) 12 in
Ground Clearance (off-road) 20 in
Sleeping Capacity 3-4
Rooftop Tent 85x60x9 (closed) 118 lbs
Frame Material 1/4” Closed Tube Steel
Frame Coating Powder Coat w/e-coat Primer
