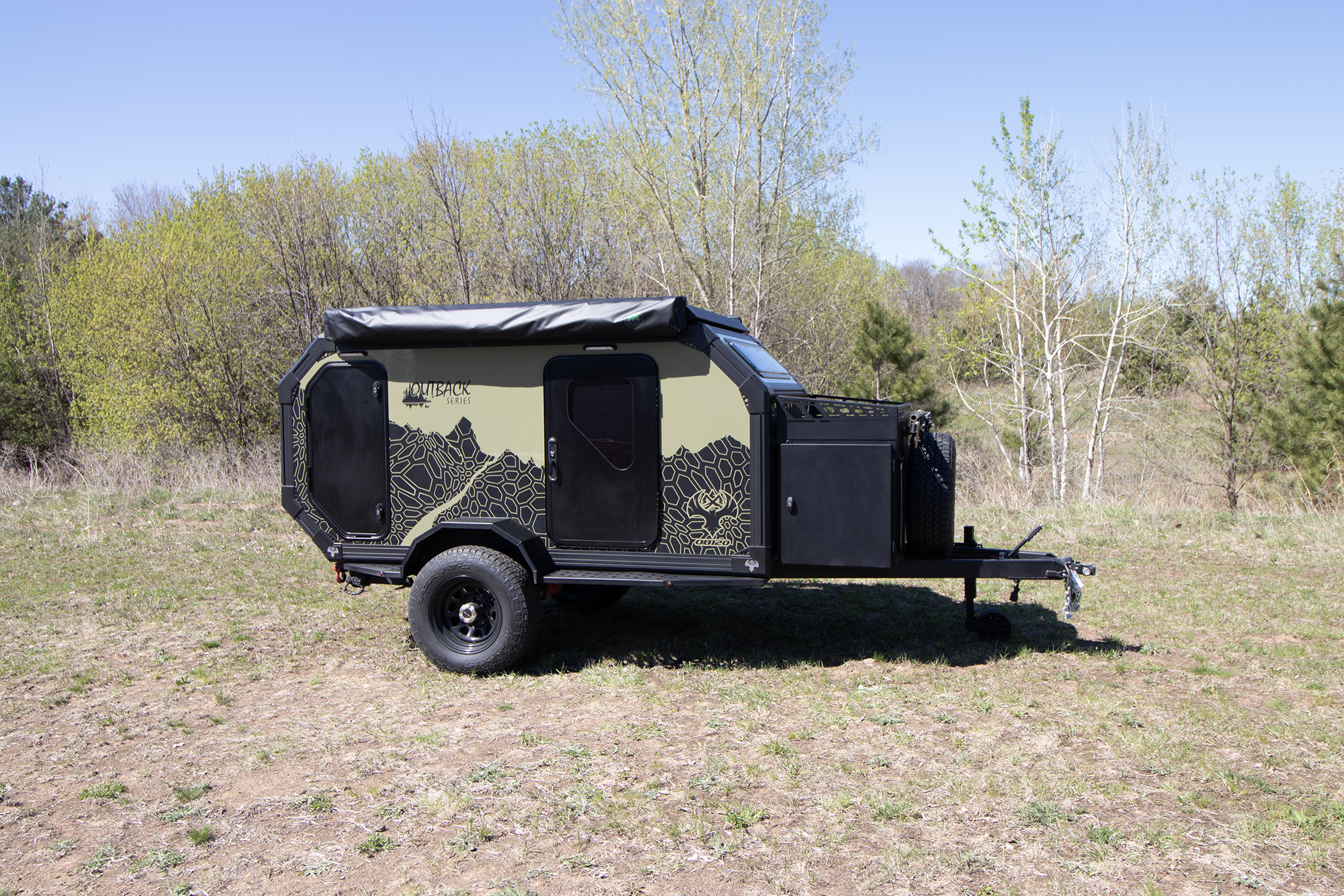

OUTBACK 120
OB120 INTRO

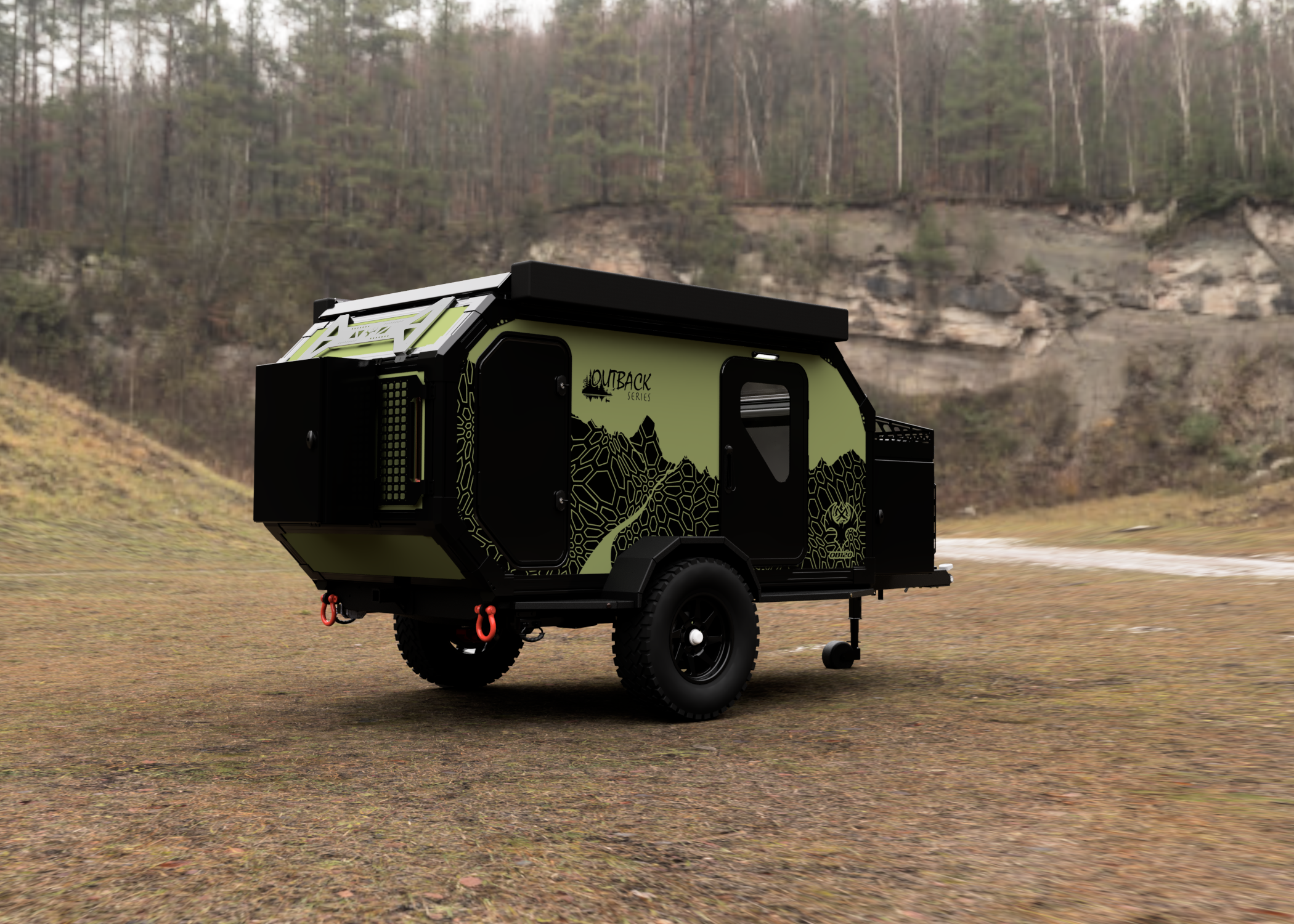

Off-Road Capable

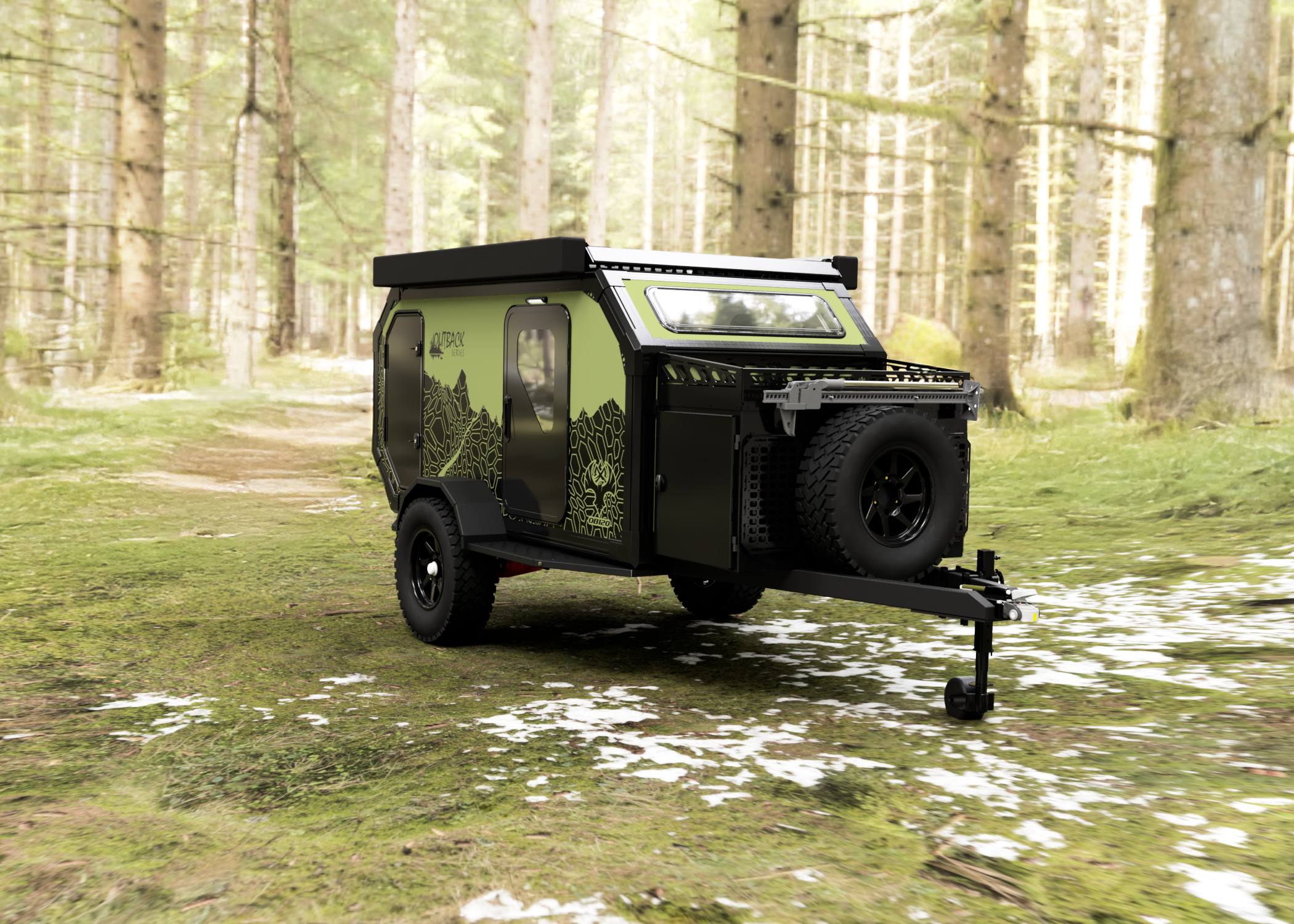

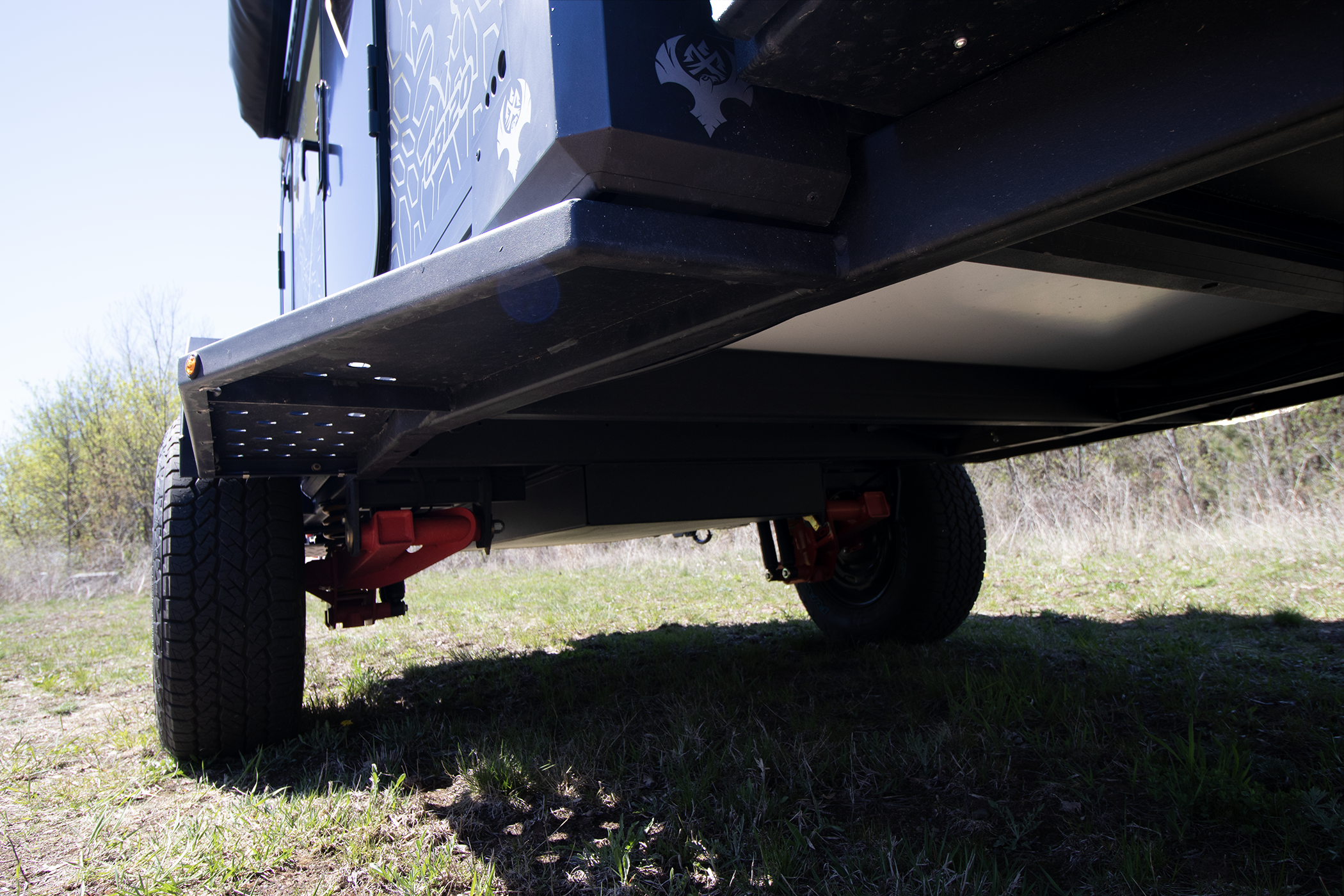

The Outback series will go where most trailers simply can’t. The Cruisemaster CRS independent suspension and 32 inch all-terrian tires mounted to a rugged steel chassis provides a tough, stable platform to get you even further into the wilderness! With a small footprint and low center of gravity, the Outback series can get in and out of those tight spots with ease! The Cruisemaster DO35 articulating hitch ensures safety and peace-of-mind through rough conditions.
Tow-ability
Wether you’re a Jeep enthusiast, or a die-hard Toyota fan, the Outback is the perfect option for any adventure addict! This small adventure trailer is capable of doing big things without needing a full-size truck to safely tow it. Despite it’s small size, the Outback is a well-mannered adventure trailer that doesn’t fall short in function or quality.
Outdoor Function

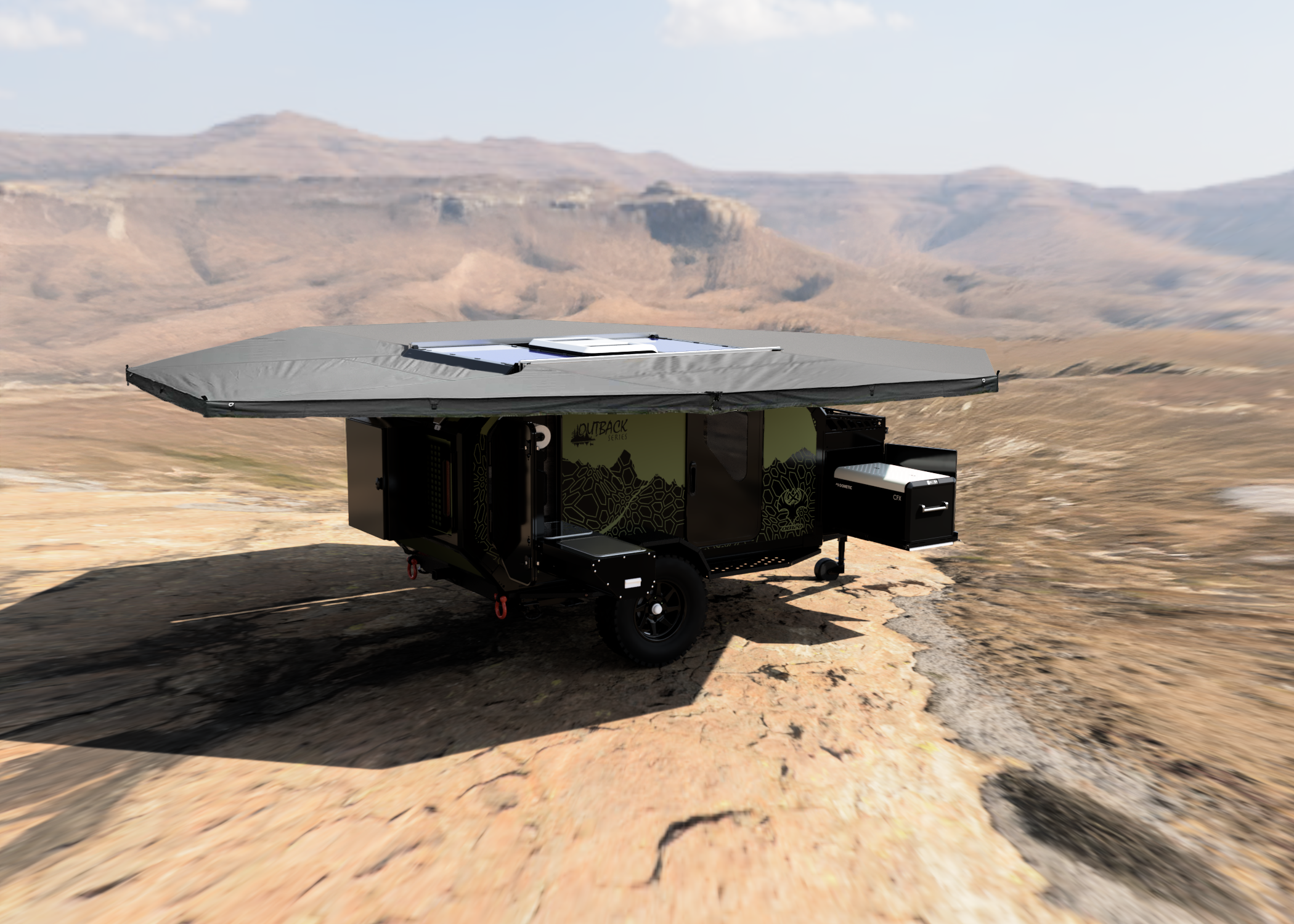

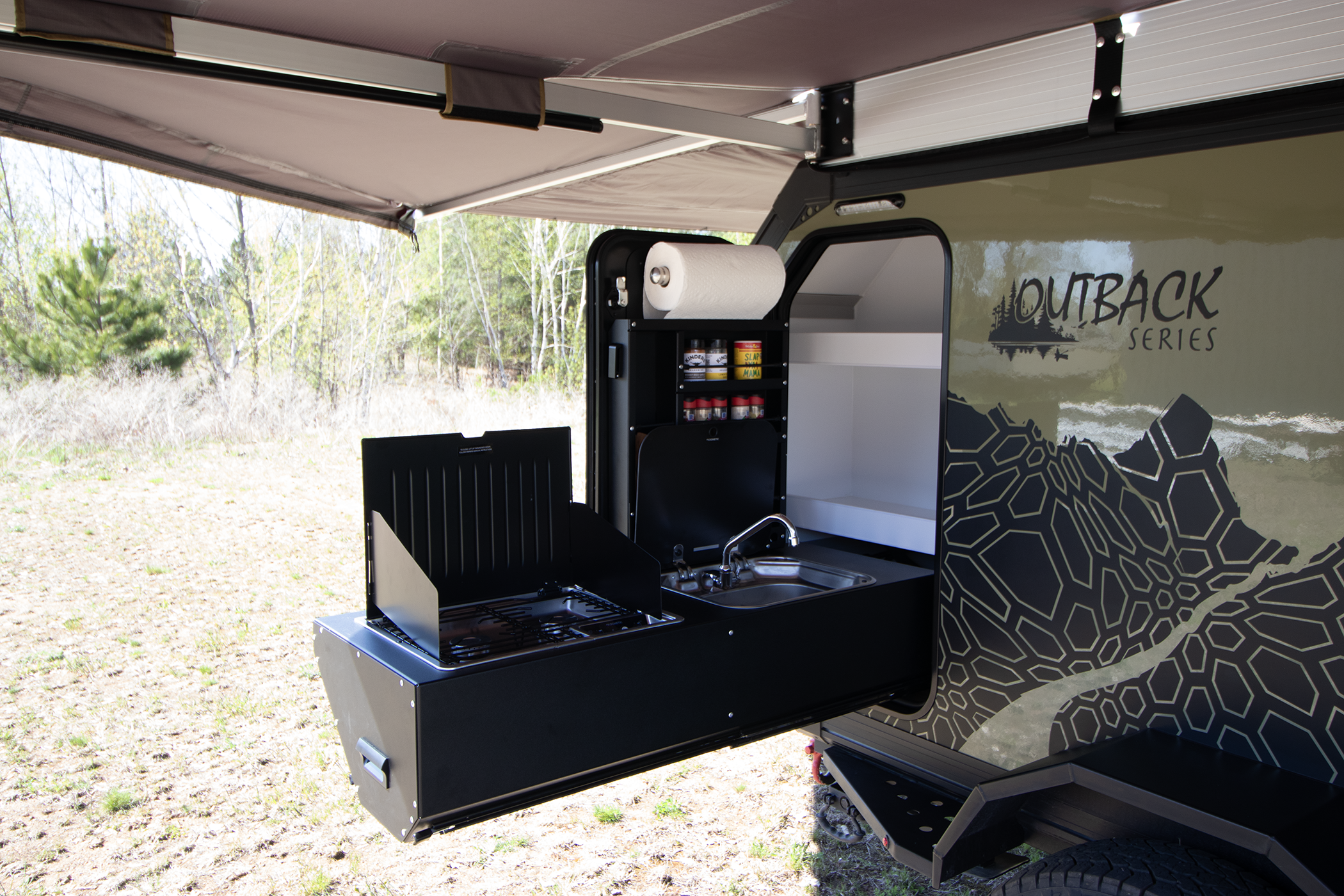

Extend your functional living space outside! The available 360˚ awning provides shelter while you’re cooking or just relaxing outdoors. The outdoor kitchen is designed to give you a convenient place to cook your meals and store your food supplies away from the elements.

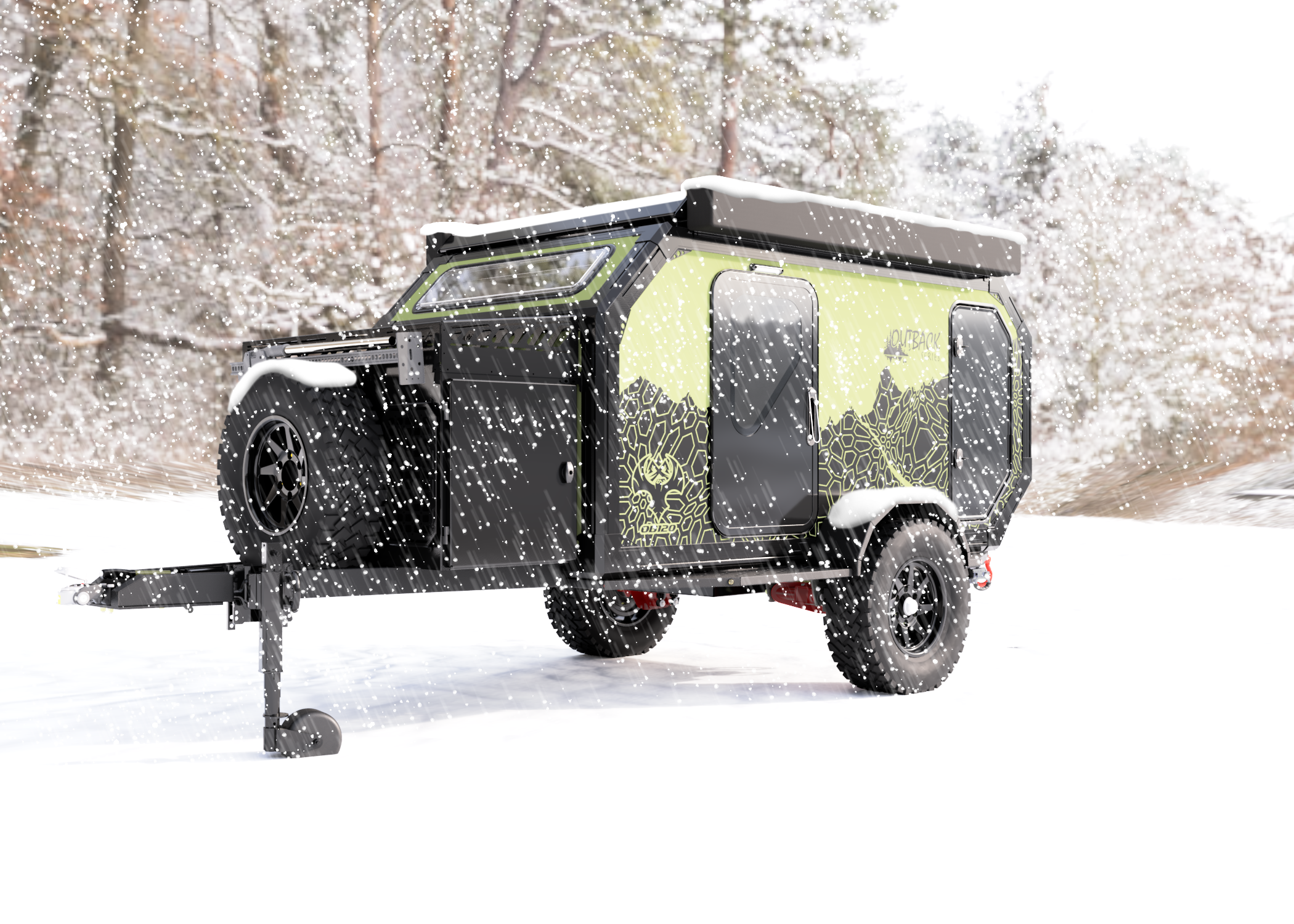

Unmatched 4-Season Comfort
Our fully insulated (almost 3” thick) wall panels matched with the Truma Combi furnace/water heater combo set the stage for cold-weather comfort down to -40˚. The heated water tank keeps everything functional when the weather gets below freezing outside. The rooftop 12V air conditioner keeps you cool during those hot summer nights, even off-grid.
Off-Road Capable
The Outback series will go where most trailers simply can’t. The Cruisemaster CRS independent suspension and 32 inch all-terrian tires mounted to a rugged steel chassis provides a tough, stable platform to get you even further into the wilderness! With a small footprint and low center of gravity, the Outback series can get in and out of those tight spots with ease! The Cruisemaster DO35 articulating hitch ensures safety and peace-of-mind through rough conditions.
Tow-ability
Wether you’re a Jeep enthusiast, or a die-hard Toyota fan, the Outback is the perfect option for any adventure addict! This small adventure trailer is capable of doing big things without needing a full-size truck to safely tow it. Despite it’s small size, the Outback is a well-mannered adventure trailer that doesn’t fall short in function or quality.
Outdoor Function
Extend your functional living space outside! The available 360˚ awning provides shelter while you’re cooking or just relaxing outdoors. The outdoor kitchen is designed to give you a convenient place to cook your meals and store your food supplies away from the elements.
Unmatched 4-Season Comfort
Our fully insulated (almost 3” thick) wall panels matched with the Truma Combi furnace/water heater combo set the stage for cold-weather comfort down to -40˚. The heated water tank keeps everything functional when the weather gets below freezing outside. The rooftop 12V air conditioner keeps you cool during those hot summer nights, even off-grid.
COLORS
GREEN
EXTERIOR

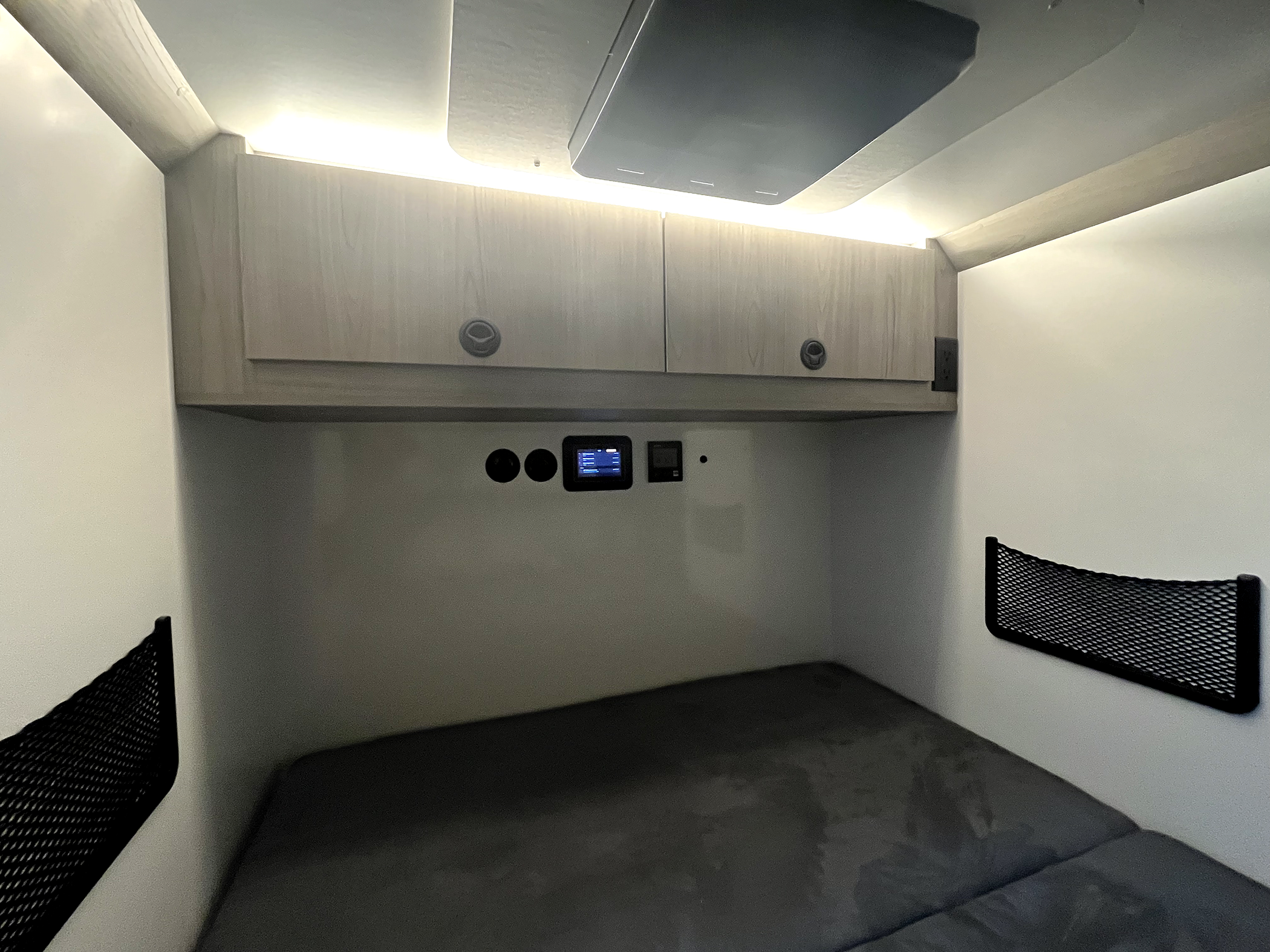

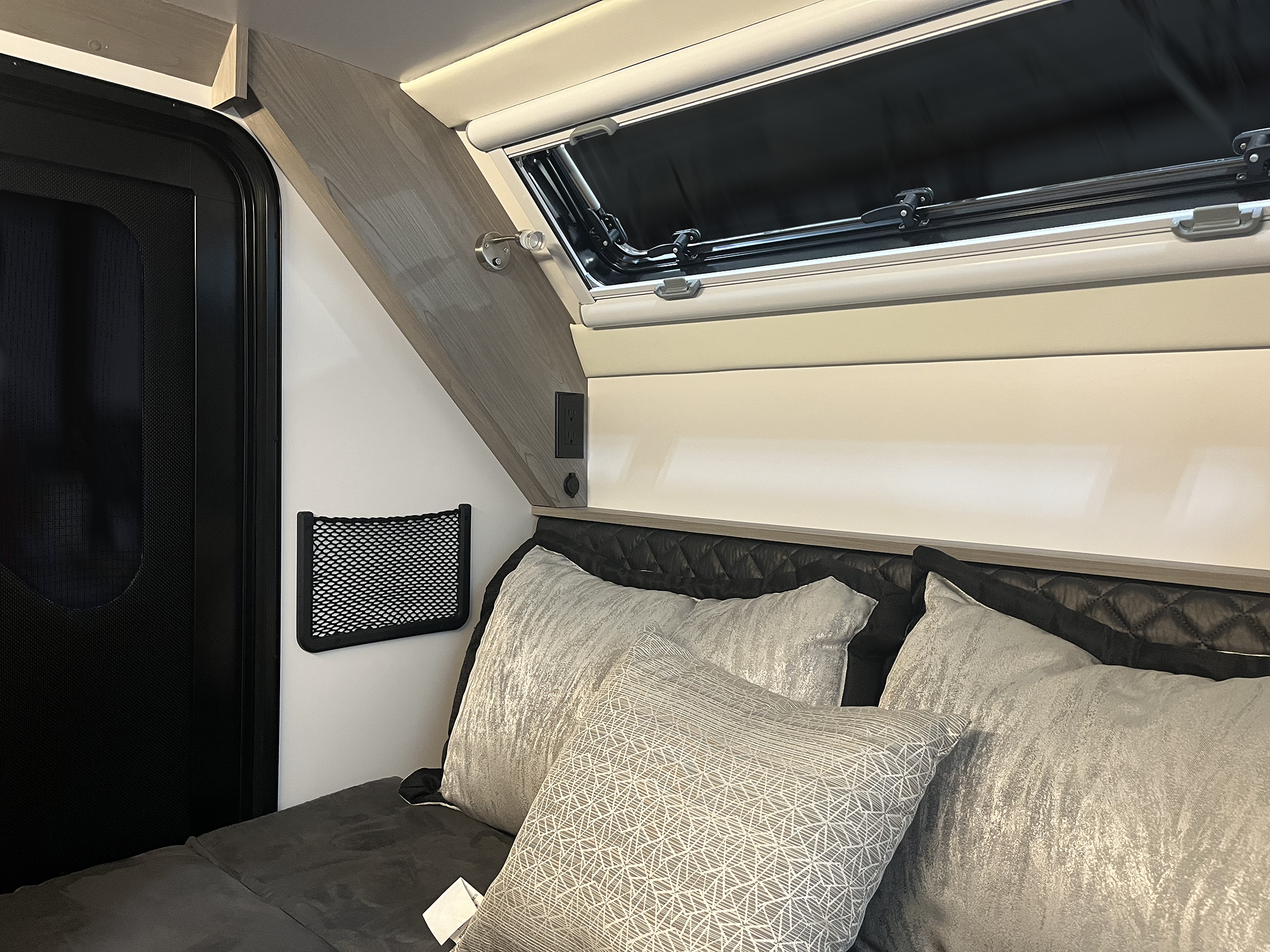

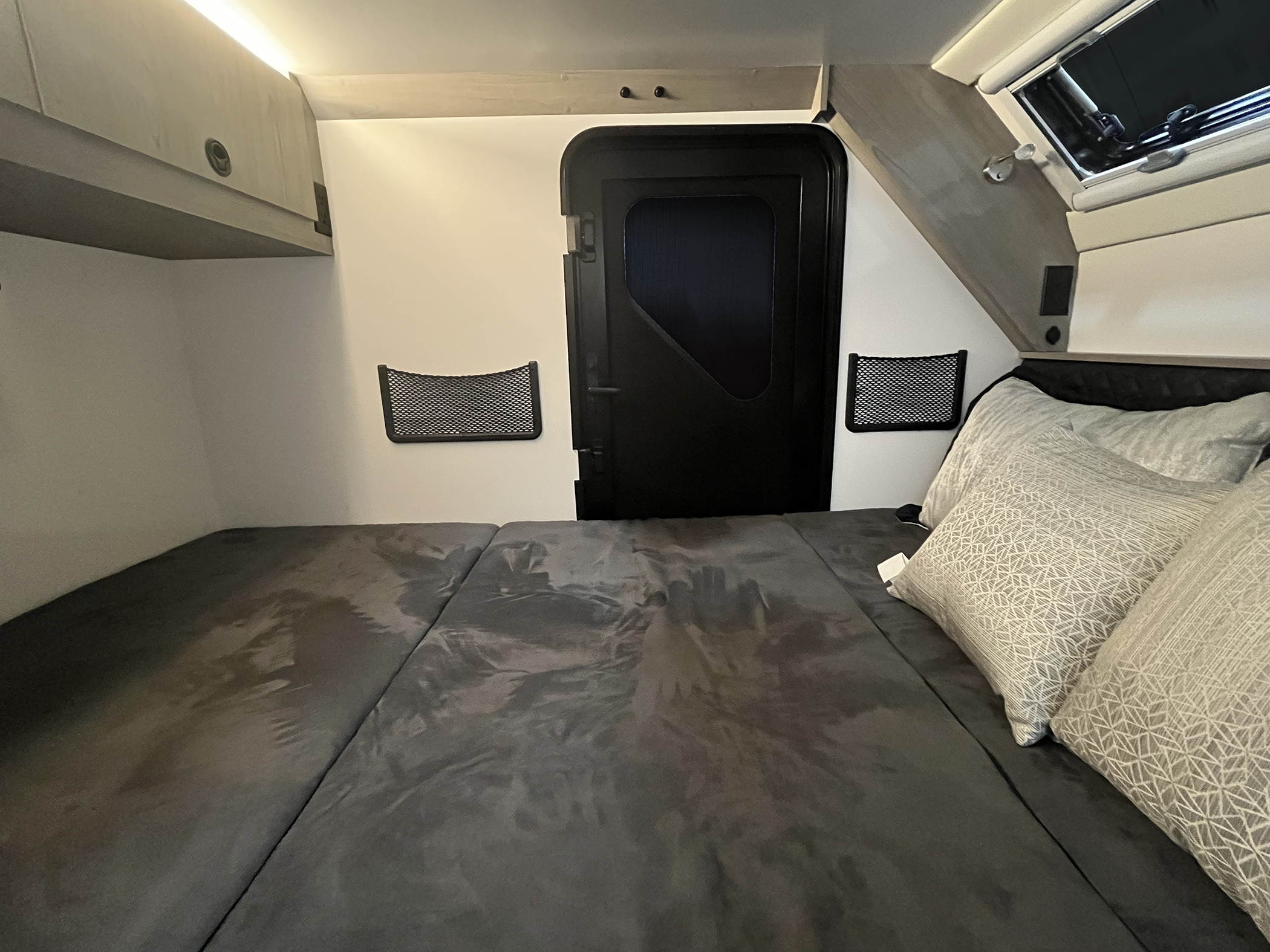

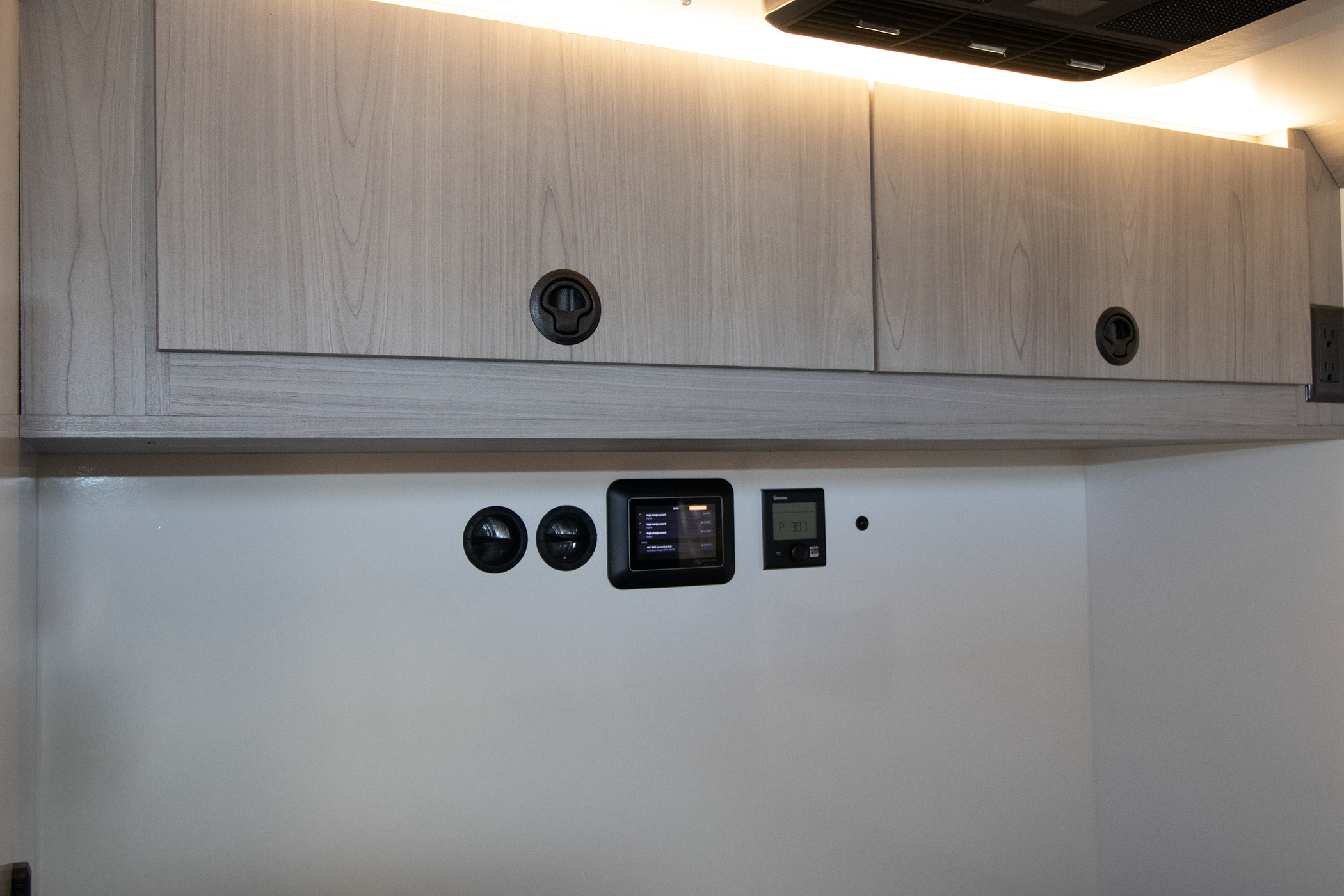

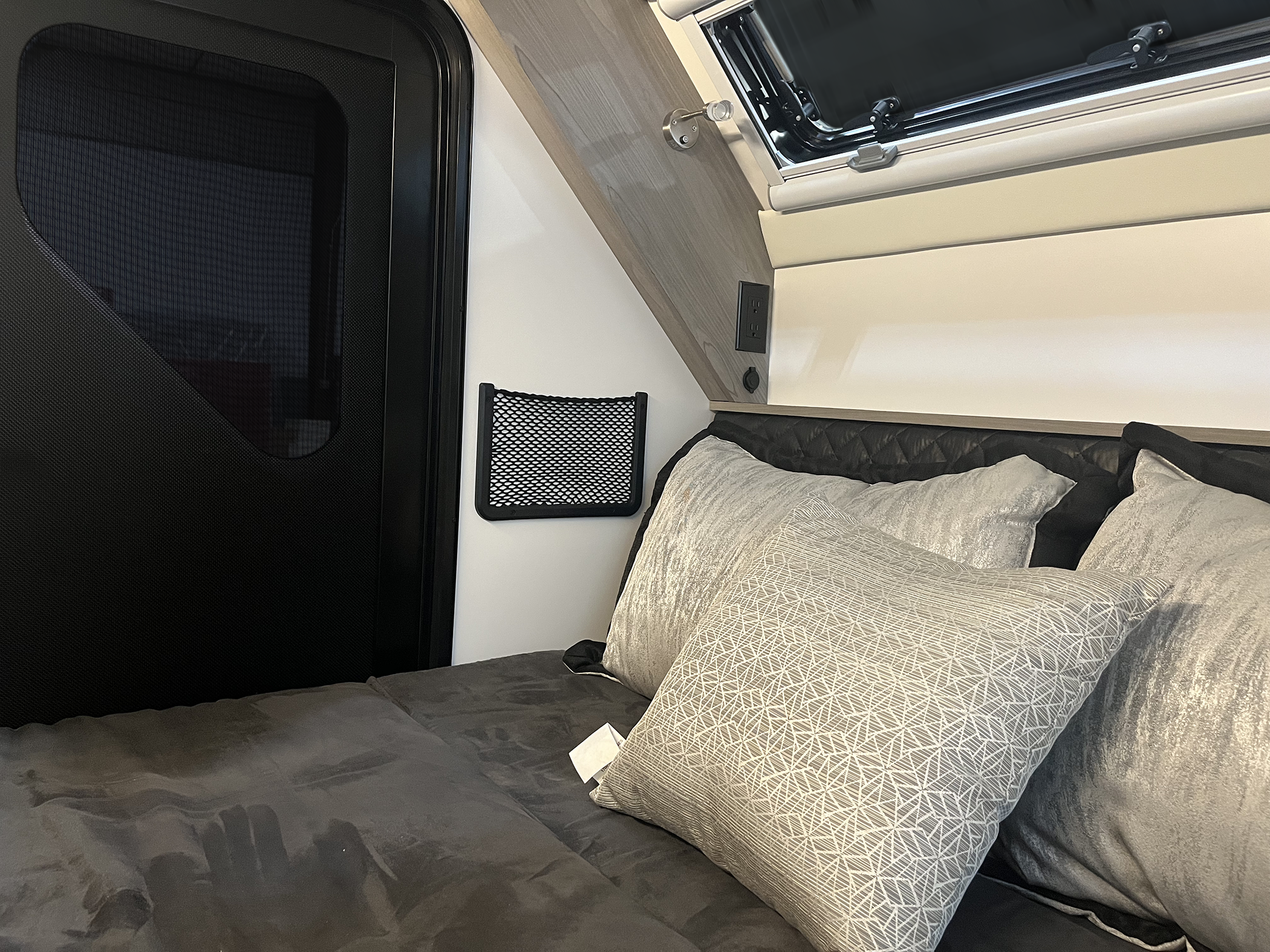

INTERIOR

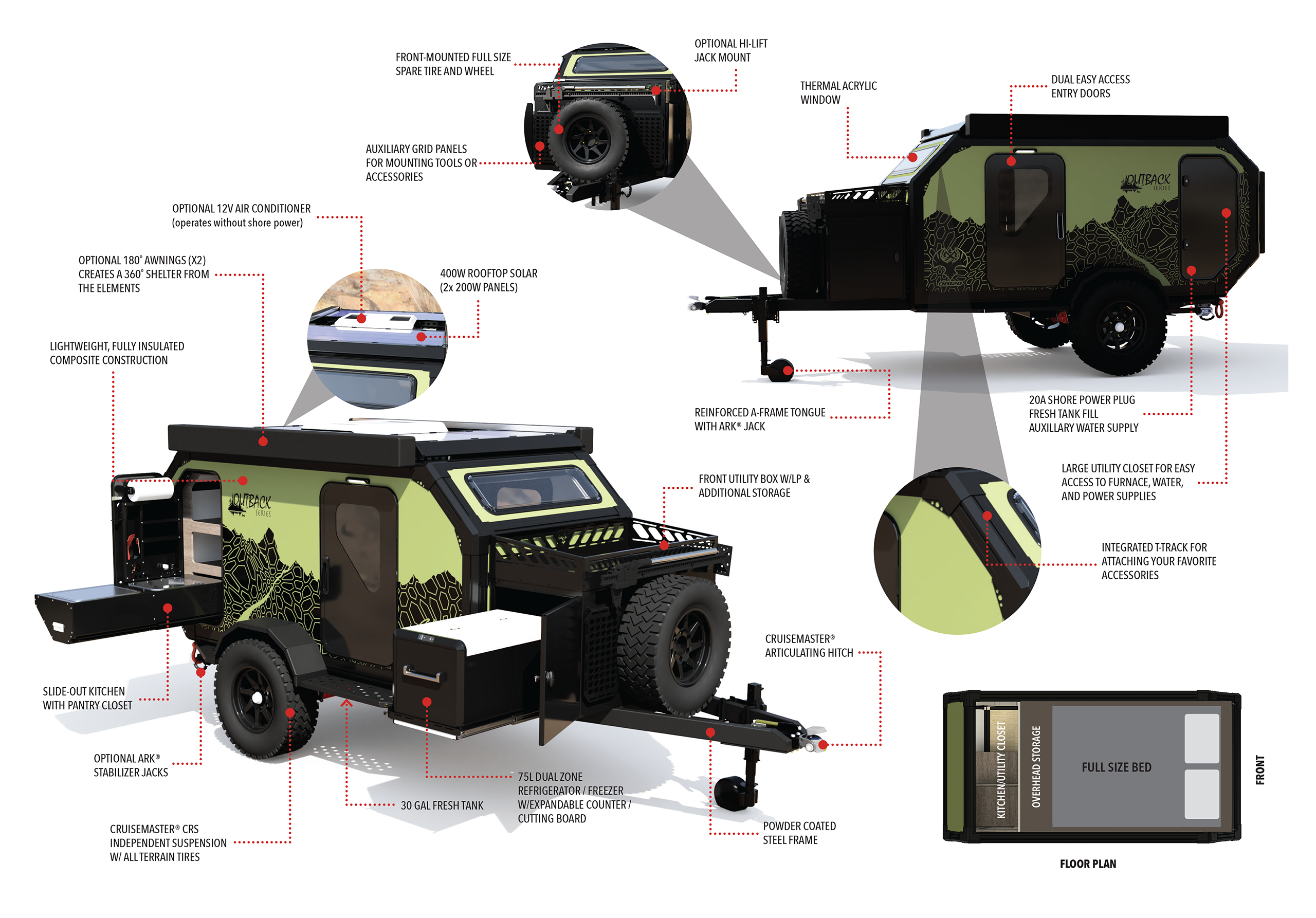

FEATURES

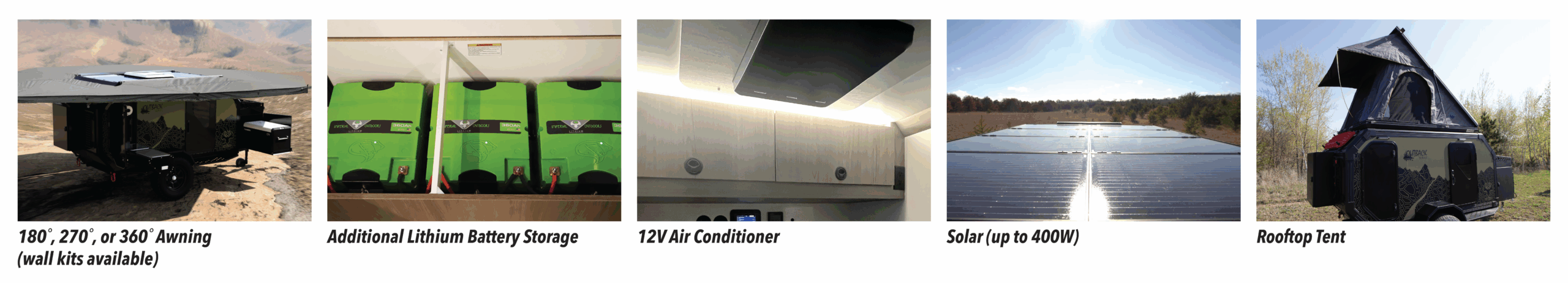

OPTIONS

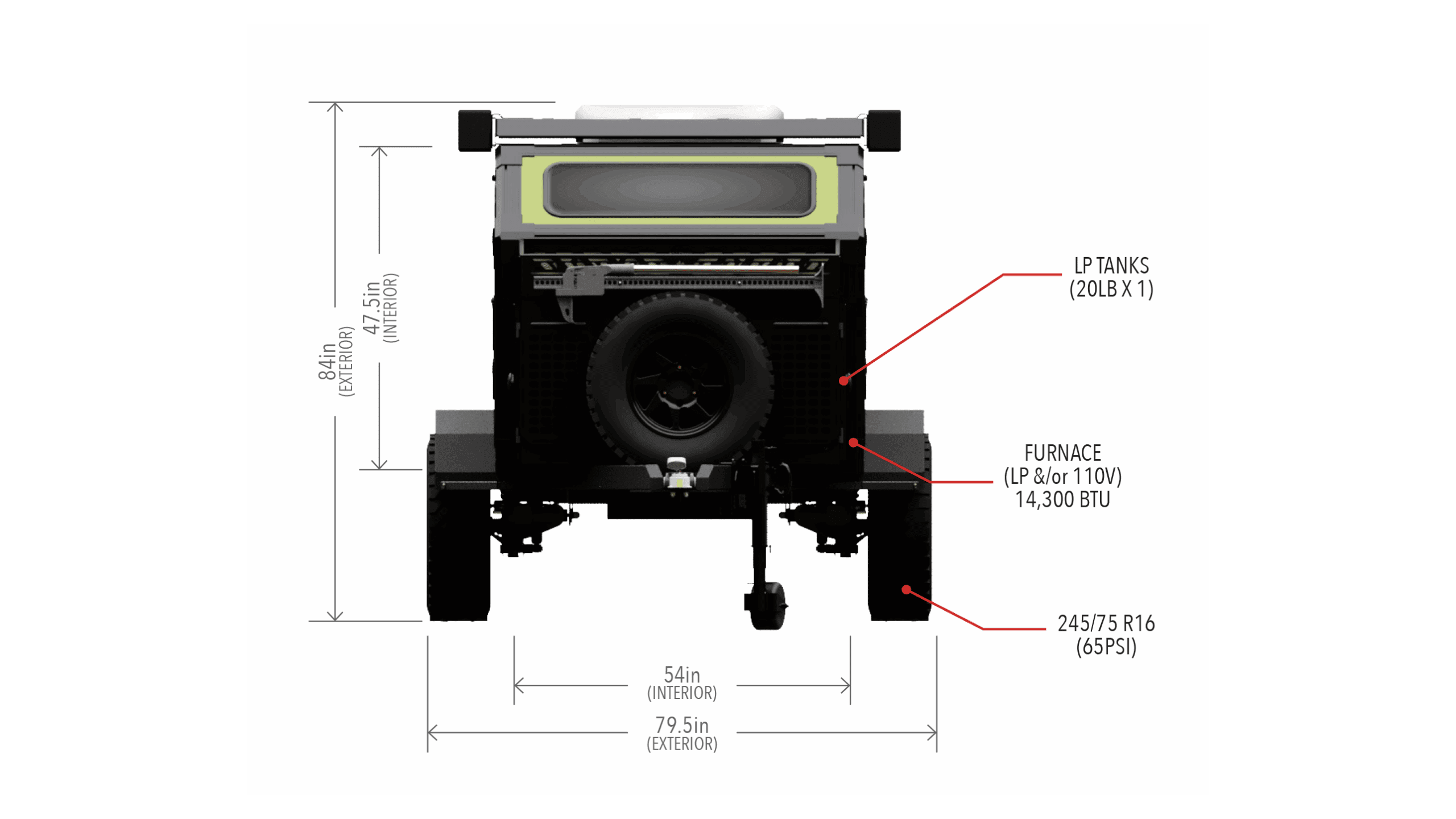

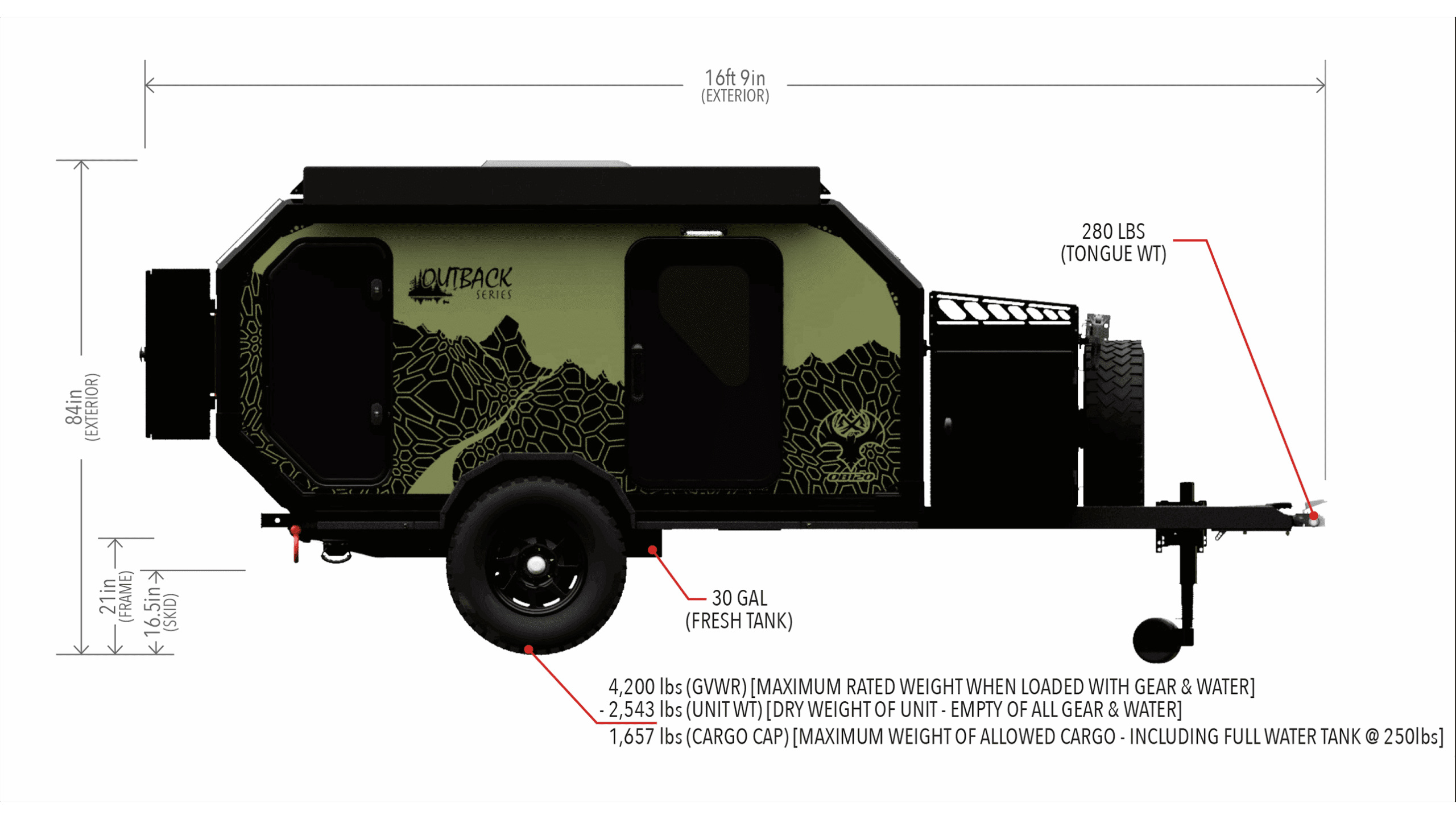

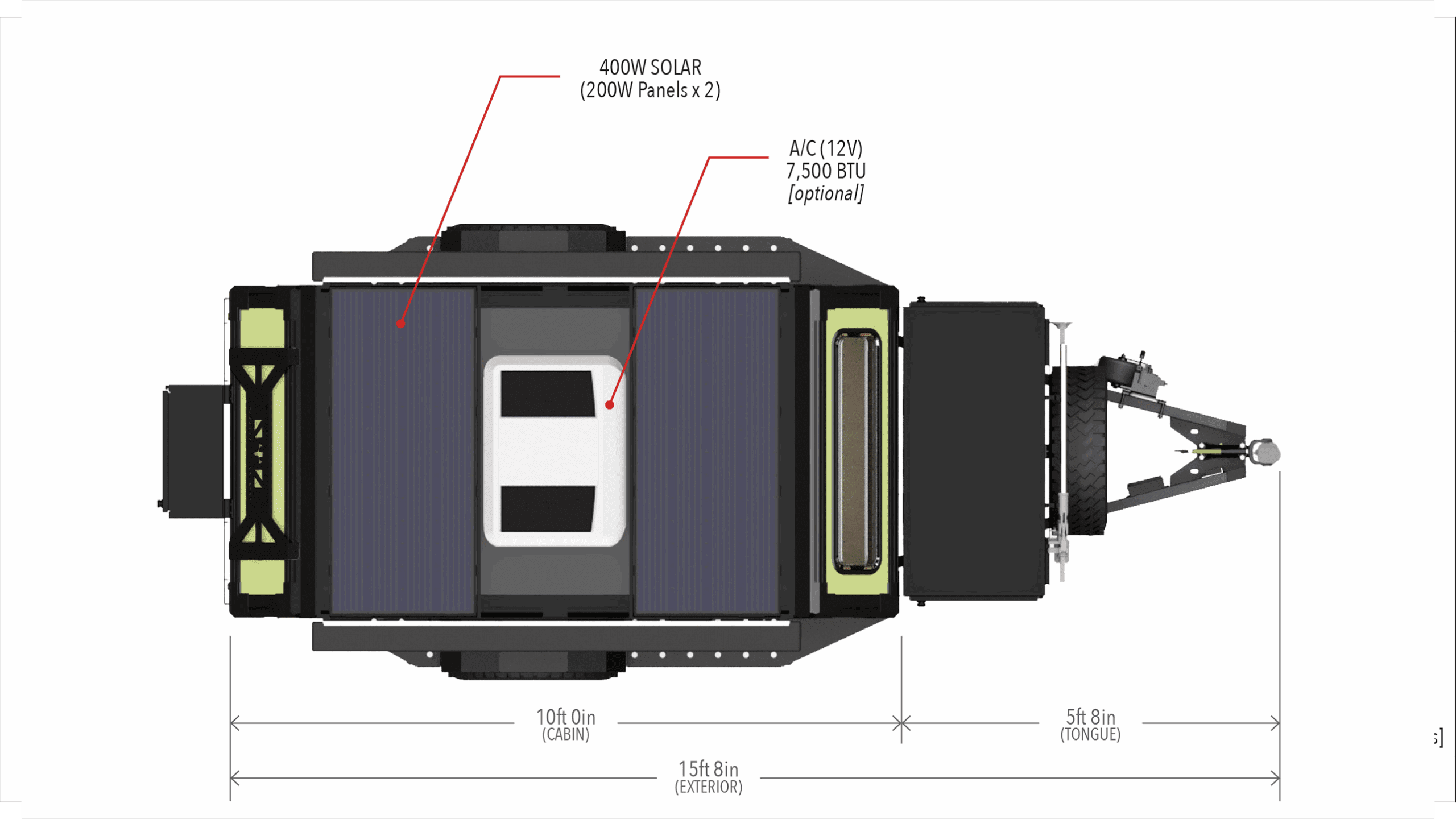

DIMENSIONS
| DIMENSIONS | |
| Overall Length (not including rear accessories) | 21 ft 7 in |
| Overall Width (including fenders) | 91 in |
| Overall Height | 9 ft 9 in |
| Interior Height (floor-to-ceiling) | 75.5 in |
| Interior Width (wall-to-wall) | 78 in |
| Ground Clearance (to skid plate) | 21 in |
| Ground Clearance (to frame) | 24 in |
| Tire Size | 265/75 R16 |
| WEIGHTS | |
| Unit Weight | 4400 lbs |
| Max Trailer Capacity (GVWR) | 6172 lbs |
| Tongue Weight | 490 lbs |
| CAPACITY | |
| Sleeping Capacity | 2+ |
| Fresh Tank Capacity | 60 Gal |
| Grey Tank Capacity | 60 Gal |
| Refrigerator Capacity | 3 cu ft |
| LP Tank Capacity | (2x) 20 lb |
| Battery Capacity (Base Capacity) | 360 Ah Lithium (x1) |
| INFO | |
| Furnace | 14,300 BTU |
| Air Conditioner (12V) | 6,824 BTU |
| Solar Output | 240 W |
| Frame Material | Tube Steel |
| Frame Coating | Powder Coat w/e-coat Primer |
